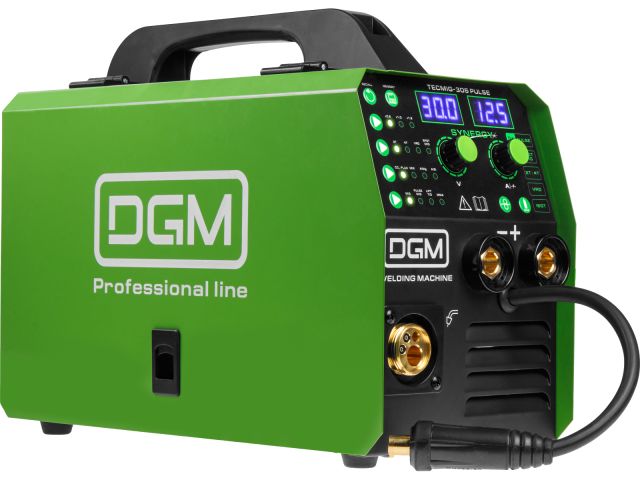

MIG welder TECMIG-305 PULSE
Vendor code:
DG5823-3
| Barcode: | 6978018619078 |
| Dimensions LxWxH, cm: | 46.5 x 34.2 x 37.8 |
| Weight with packaging, kg: | 12.86 |
Prices
Recommended retail price USD excluding VAT
240,41
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Power supply voltage
- 150–240 V
- Power supply frequency
- 50/60 Hz
- Power supply type
- 1 phase
- Open circuit voltage
- 71 V
- Welding current (MIG/PULSE MIG)
- 40-265 A
- Welding current (TIG)
- 10-220 A
- Welding current (MMA)
- 10-220 A
- Duty cycle (DC) at max. current
Advantages:
■ Memory storage for up to 9 settings for MIG/PULSE MIG modes;
■ SYNERGY - select welding parameters (welding mode, wire diameter, 2T/4T), adjust the welding intensity using the control knob;
■ PULSE MIG mode for welding aluminum alloys;
■ SPOT mode for semiautomatic welding of thin sheet metal;
■ Short or long seam welding (2T/4T);
■ Polarity reversal for gas-free welding (FLUX);
■ Teflon wire feed liner included;
■ Welding wire adjustment function;
■ Gas flow test function;

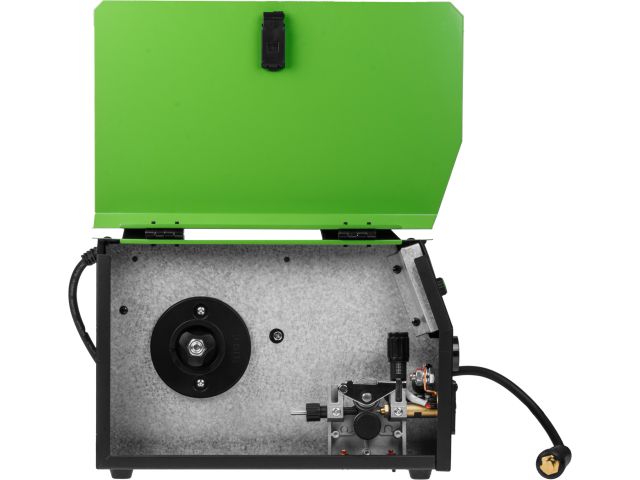

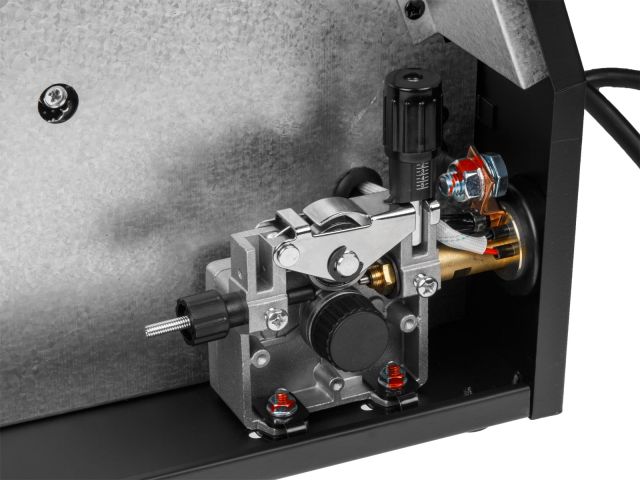

■ Metal wire feed mechanism;
■ Spool size up to 5 kg / 200 mm;
■ VRD (Variable Open Circuit Voltage) function (MMA);
■ Extended welding connectors type 35-50;
■ Stable operation in low-voltage networks (from 150 V);
■ An interference suppression filter protects other devices from interference.
| Barcode: | 6978018619078 |
| Dimensions LxWxH, cm: | 46.5 x 34.2 x 37.8 |
| Weight with packaging, kg: | 12.86 |
Description:
The new model in the TECMIG line boasts expanded functionality and amazing process control during welding. The MEMORY function allows you to save up to 9 manually selected settings. Synergic programs help even inexperienced users configure the semiautomatic machine in two steps. PULSE mode allows you to weld thin metals due to lower heat input and is suitable for welding aluminum alloys. SPOT spot welding mode is ideal for welding thin sheet metal (e.g., car bodies). FLUX semiautomatic welding with flux-cored wire without the use of shielding gas. TIG welding with touch ignition. A valve-type TIG torch is available as an optional accessory. Classic manual arc welding with a coated MMA electrode. Arc force and open-circuit voltage (VRD) are adjustable. ATTENTION! The machine is supplied without a plug. When operating at maximum currents, the device must be equipped with a 32A 230V single-phase power plug (not included).

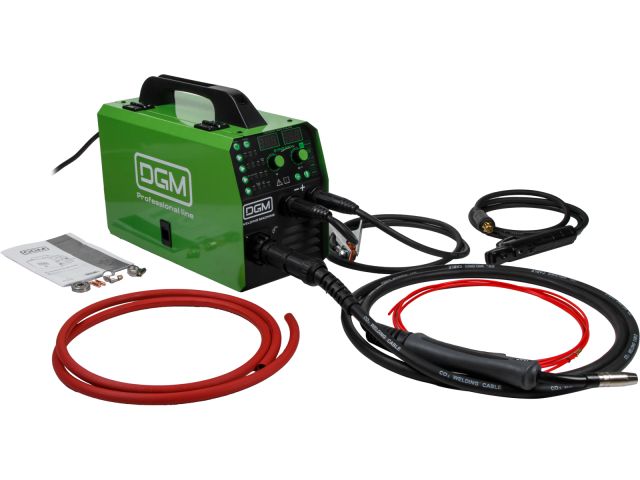

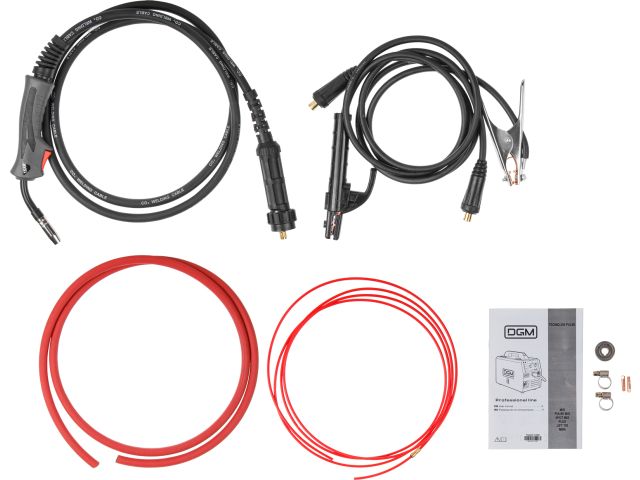

Equipment:
+ Semiautomatic welding machine;
+ MIG welding torch – 3 meters;
+ Ground clamp with cable – 1.6 meters;
+ MMA electrode holder with cable – 1.8 meters;
+ Gas hose with two clamps – 2 meters;
+ V-type feed roll 0.8 – 1.0 – 1 pc. (installed in the wire feed mechanism);
+ U-type feed roll 1.0 – 1.2 – 1 pc.;
+ Contact tip 1.0 mm – 1 pc. (installed in the welding torch);
+ Contact tip 0.8 mm – 1 pc.;
+ Contact tip 1.2 mm – 1 pc.;
+ Operation manual.
Compatible products:
WM-6110 Антипригарный спрей SOLARIS
33963 Вилка силовая 32 А промышл.
ВП32-922 Вилка силовая 32 А промышл.
JP7602-01 Вилка 16 А (подходит для работы на макс токах)
SQ0612-0001 Вилка 16 А (подходит для работы на макс токах)
Advantages:
■ Memory storage for up to 9 settings for MIG/PULSE MIG modes;
■ SYNERGY - select welding parameters (welding mode, wire diameter, 2T/4T), adjust the welding intensity using the control knob;
■ PULSE MIG mode for welding aluminum alloys;
■ SPOT mode for semiautomatic welding of thin sheet metal;
■ Short or long seam welding (2T/4T);
■ Polarity reversal for gas-free welding (FLUX);
■ Teflon wire feed liner included;
■ Welding wire adjustment function;
■ Gas flow test function;
■ Metal wire feed mechanism;
■ Spool size up to 5 kg / 200 mm;
■ VRD (Variable Open Circuit Voltage) function (MMA);
■ Extended welding connectors type 35-50;
■ Stable operation in low-voltage networks (from 150 V);
■ An interference suppression filter protects other devices from interference.
| Barcode: | 6978018619078 |
| Dimensions LxWxH, cm: | 46.5 x 34.2 x 37.8 |
| Weight with packaging, kg: | 12.86 |
Description:
The new model in the TECMIG line boasts expanded functionality and amazing process control during welding. The MEMORY function allows you to save up to 9 manually selected settings. Synergic programs help even inexperienced users configure the semiautomatic machine in two steps. PULSE mode allows you to weld thin metals due to lower heat input and is suitable for welding aluminum alloys. SPOT spot welding mode is ideal for welding thin sheet metal (e.g., car bodies). FLUX semiautomatic welding with flux-cored wire without the use of shielding gas. TIG welding with touch ignition. A valve-type TIG torch is available as an optional accessory. Classic manual arc welding with a coated MMA electrode. Arc force and open-circuit voltage (VRD) are adjustable. ATTENTION! The machine is supplied without a plug. When operating at maximum currents, the device must be equipped with a 32A 230V single-phase power plug (not included).
Equipment:
+ Semiautomatic welding machine;
+ MIG welding torch – 3 meters;
+ Ground clamp with cable – 1.6 meters;
+ MMA electrode holder with cable – 1.8 meters;
+ Gas hose with two clamps – 2 meters;
+ V-type feed roll 0.8 – 1.0 – 1 pc. (installed in the wire feed mechanism);
+ U-type feed roll 1.0 – 1.2 – 1 pc.;
+ Contact tip 1.0 mm – 1 pc. (installed in the welding torch);
+ Contact tip 0.8 mm – 1 pc.;
+ Contact tip 1.2 mm – 1 pc.;
+ Operation manual.
