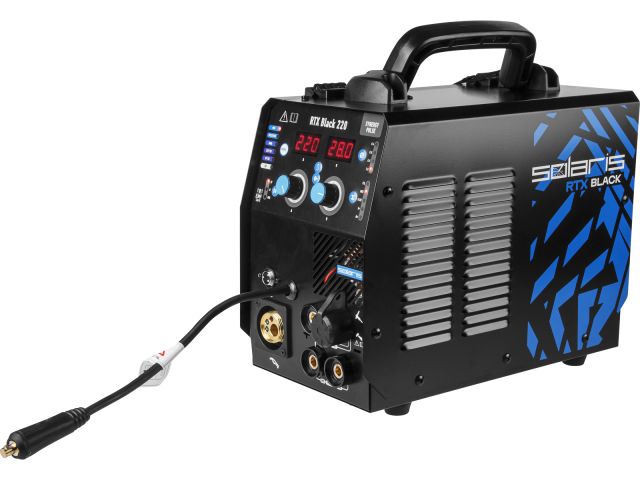

Semi-automatic inverter welder Solaris RTX Black 220 (ATTENTION! The machine is supplied without a power plug. For operation at maximum current, the machine must be fitted with a heavy-duty single-phase plug (32A, 230V), which is not included.)
Vendor code:
SL5712-6
| Barcode: | 6979163403017 |
| Dimensions LxWxH, cm: | 47.6 x 47.8 x 40 |
| Weight with packaging, kg: | 17.3 |
Prices
Recommended retail price USD excluding VAT
516,30
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Nominal supply voltage
- 230 V
- Permissible supply voltage range
- 160–240 V
- Supply frequency
- 50/60 Hz
- Mains type
- single-phase
- Open-circuit voltage (MIG / MIX / FLUX / MIG PULSE / HF TIG / LIFT TIG)
- 68 V
- Open-circuit voltage (CUT)
- 310 V
- Welding current (MIG/MIX/FLUX/MIG PULSE)
- 30–220 A
- Welding current (HF TIG / LIFT TIG)
- 30–220 A
Advantages:
■ 8 operating modes: MIG / PULSE MIG / FLUX / MIX / HF TIG / LIFT TIG / MMA / CUT;
■ Full-featured air-plasma cutting (CUT) mode (up to 12 mm);
■ Synergic settings for semi-automatic welding: simply select the wire diameter and shielding gas type, and the machine automatically adjusts to the specified parameters;
■ PULSE MIG mode for welding aluminum alloys;
■ Adjustable timing parameters: current upslope and downslope, as well as pre-flow and post-flow gas purging in HF TIG mode;
■ Dual displays and additional setting indicators for maximum ease of setup and operational monitoring;
■ Equipped with a standard Euro-connector for MIG torches;
■ Wire inching (setup) mode;
■ Gas flow test mode;
■ Short or long weld seam capability (2T/4T modes);
■ Polarity reversal for gasless (FLUX) welding;
■ Adjustable Arc Force (MMA);
■ VRD (Voltage Reduction Device) function for safe open-circuit voltage (MMA);
■ Stable operation on low-voltage power grids (160V);
■ Built-in interference filter to protect other devices from electrical noise;
| Barcode: | 6979163403017 |
| Dimensions LxWxH, cm: | 47.6 x 47.8 x 40 |
| Weight with packaging, kg: | 17.3 |
Description:
A multifunction machine with 8 operating modes: Semi-automatic welding using various types of welding wire in a shielding gas atmosphere (MIG/MAG); Pulse mode enables welding of thin metals due to reduced heat input; also suitable for aluminum welding (PULSE MIG); Semi-automatic flux-cored wire welding without shielding gas (FLUX); Semi-automatic welding using a gas mixture improves weld quality, stabilizes the arc, and minimizes spatter (MIX); Tungsten inert gas (TIG) welding with high-frequency (HF) non-contact arc ignition; ensures easy starting and reduced tungsten electrode wear (HF TIG); Tungsten inert gas (TIG) welding with contact (Lift) arc ignition (LIFT TIG); Classic manual metal arc (MMA) welding with coated electrodes; Plasma metal cutting mode (CUT); Includes a complete set of accessories for each operating mode. ATTENTION! The machine is supplied without a power plug. For operation at maximum current, the machine must be fitted with a heavy-duty single-phase plug (32A, 230V), which is not included.
Equipment:
+ A multifunction machine with 8 operating modes:
+ Semi-automatic welding using various types of welding wire in a shielding gas atmosphere (MIG/MAG);
+ Pulse mode enables welding of thin metals due to reduced heat input; also suitable for aluminum welding (PULSE MIG);
+ Semi-automatic flux-cored wire welding without shielding gas (FLUX);
+ Semi-automatic welding using a gas mixture improves weld quality, stabilizes the arc, and minimizes spatter (MIX);
+ Tungsten inert gas (TIG) welding with high-frequency (HF) non-contact arc ignition; ensures easy starting and reduced tungsten electrode wear (HF TIG);
+ Tungsten inert gas (TIG) welding with contact (Lift) arc ignition (LIFT TIG);
+ Classic manual metal arc (MMA) welding with coated electrodes;
+ Plasma metal cutting mode (CUT);
+ Includes a complete set of accessories for each operating mode.
+
+ ATTENTION! The machine is supplied without a power plug. For operation at maximum current, the machine must be fitted with a heavy-duty single-phase plug (32A, 230V), which is not included.
Compatible products:
WM-6110 SOLARIS Anti-spatter spray
33963 Industrial power plug, 32A
VP32-922 Industrial power plug, 32A
JP7602-01 Plug, 16A (not suitable for operation at maximum current)
SQ0612-0001 Plug, 16A (not suitable for operation at maximum current)
Advantages:
■ 8 operating modes: MIG / PULSE MIG / FLUX / MIX / HF TIG / LIFT TIG / MMA / CUT;
■ Full-featured air-plasma cutting (CUT) mode (up to 12 mm);
■ Synergic settings for semi-automatic welding: simply select the wire diameter and shielding gas type, and the machine automatically adjusts to the specified parameters;
■ PULSE MIG mode for welding aluminum alloys;
■ Adjustable timing parameters: current upslope and downslope, as well as pre-flow and post-flow gas purging in HF TIG mode;
■ Dual displays and additional setting indicators for maximum ease of setup and operational monitoring;
■ Equipped with a standard Euro-connector for MIG torches;
■ Wire inching (setup) mode;
■ Gas flow test mode;
■ Short or long weld seam capability (2T/4T modes);
■ Polarity reversal for gasless (FLUX) welding;
■ Adjustable Arc Force (MMA);
■ VRD (Voltage Reduction Device) function for safe open-circuit voltage (MMA);
■ Stable operation on low-voltage power grids (160V);
■ Built-in interference filter to protect other devices from electrical noise;
| Barcode: | 6979163403017 |
| Dimensions LxWxH, cm: | 47.6 x 47.8 x 40 |
| Weight with packaging, kg: | 17.3 |
Description:
A multifunction machine with 8 operating modes: Semi-automatic welding using various types of welding wire in a shielding gas atmosphere (MIG/MAG); Pulse mode enables welding of thin metals due to reduced heat input; also suitable for aluminum welding (PULSE MIG); Semi-automatic flux-cored wire welding without shielding gas (FLUX); Semi-automatic welding using a gas mixture improves weld quality, stabilizes the arc, and minimizes spatter (MIX); Tungsten inert gas (TIG) welding with high-frequency (HF) non-contact arc ignition; ensures easy starting and reduced tungsten electrode wear (HF TIG); Tungsten inert gas (TIG) welding with contact (Lift) arc ignition (LIFT TIG); Classic manual metal arc (MMA) welding with coated electrodes; Plasma metal cutting mode (CUT); Includes a complete set of accessories for each operating mode. ATTENTION! The machine is supplied without a power plug. For operation at maximum current, the machine must be fitted with a heavy-duty single-phase plug (32A, 230V), which is not included.
Equipment:
+ A multifunction machine with 8 operating modes:
+ Semi-automatic welding using various types of welding wire in a shielding gas atmosphere (MIG/MAG);
+ Pulse mode enables welding of thin metals due to reduced heat input; also suitable for aluminum welding (PULSE MIG);
+ Semi-automatic flux-cored wire welding without shielding gas (FLUX);
+ Semi-automatic welding using a gas mixture improves weld quality, stabilizes the arc, and minimizes spatter (MIX);
+ Tungsten inert gas (TIG) welding with high-frequency (HF) non-contact arc ignition; ensures easy starting and reduced tungsten electrode wear (HF TIG);
+ Tungsten inert gas (TIG) welding with contact (Lift) arc ignition (LIFT TIG);
+ Classic manual metal arc (MMA) welding with coated electrodes;
+ Plasma metal cutting mode (CUT);
+ Includes a complete set of accessories for each operating mode.
+
+ ATTENTION! The machine is supplied without a power plug. For operation at maximum current, the machine must be fitted with a heavy-duty single-phase plug (32A, 230V), which is not included.
