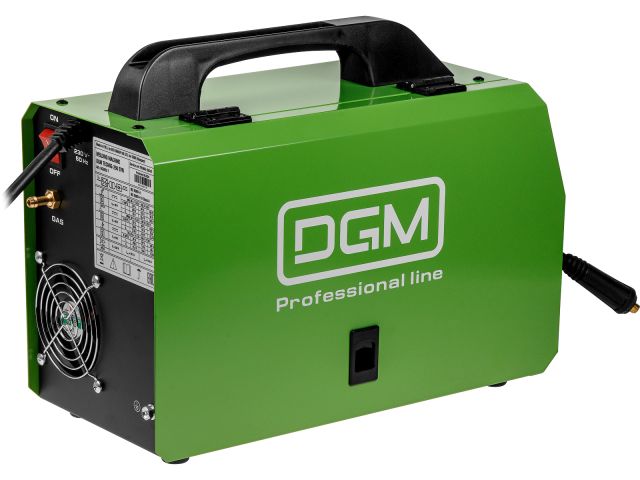

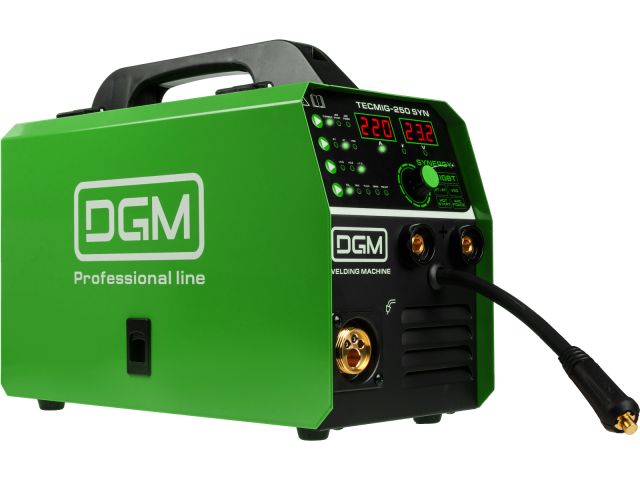

MIG welder DGM TECMIG-250 SYN (150-240 V~, 30-220 A, MIG/FLUX/MMA/TIG, synergy, euro connector, polarity change, 3 m torch)
Vendor code:
DG5822-7
Prices
Recommended retail price USD excluding VAT
165,72
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Wire diameter used
- 0.6–0.8 mm
- Input voltage
- 150–240 V~
- Network type
- 1 phase
- Open circuit voltage
- 60 V
- Rated input current
- 14.6 A
- Maximum input current
- 32.7 A
- Power factor
- COS 0.85
- Insulation class
- F
Advantages:
■ 3-in-1 - semi-automatic welding, manual welding with electrodes, TIG welding;
■ welding torch with Euro connector included;
■ SYNERGY - select welding parameters (welding mode, wire diameter, 2T/4T), use the regulator to adjust the work intensity;
■ polarity change cable for welding in shielding gases or with FLUX cored wire;
■ for semi-automatic welding: 2T/4T modes;
■ arc dynamics adjustment for MIG mode;
■ maximum wire spool size - 5 kg/200 m;
| Barcode: | 6977125195949 |
| Dimensions LxWxH, cm: | 45 x 34 x 37.5 |
| Weight with packaging, kg: | 10.4 |
Description:
Note! The device is supplied without a plug. In case of operation at maximum currents, the device must be equipped with a 32A 230V single-phase power plug (not included).
Equipment:
+ Semi-automatic welding

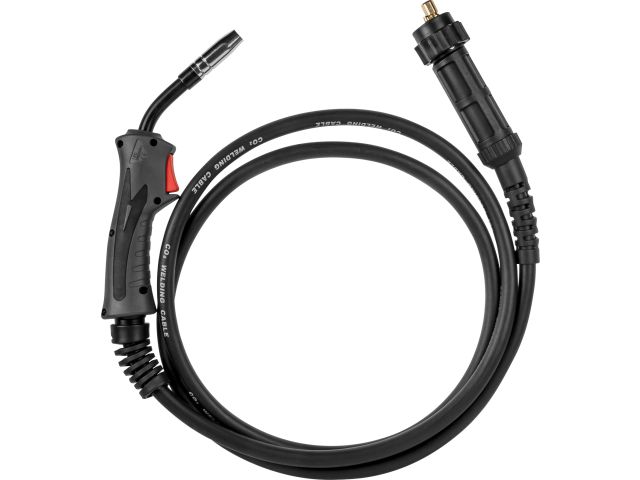

+ MIG welding torch - 3 meters

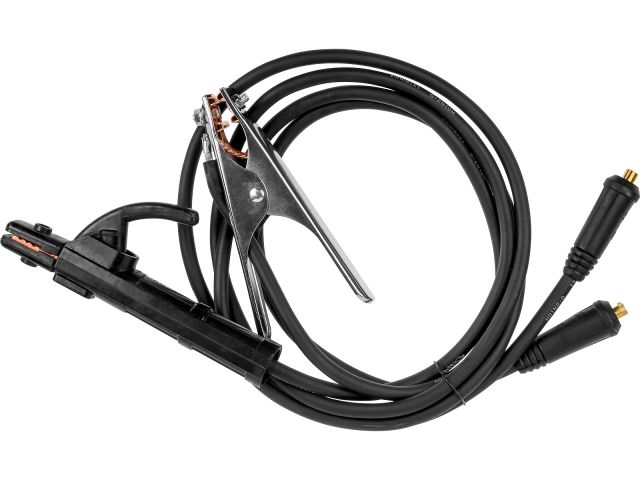

+ Grounding terminal - 1.6 meters
+ Electrode holder MMA - 1.8 meters
+ Contact tip 0.8 mm. - 1 piece
+ Contact tip 1.0 mm. - 1 piece
+ Operation manual
Compatible products:
33963 Industrial power plug 32 A
VP32-922 Industrial power plug 32 A
JP7602-01 16 A plug (not suitable for maximum current operation)
SQ0612-0001 16 A plug (not suitable for maximum current operation)
Advantages:
■ 3-in-1 - semi-automatic welding, manual welding with electrodes, TIG welding;
■ welding torch with Euro connector included;
■ SYNERGY - select welding parameters (welding mode, wire diameter, 2T/4T), use the regulator to adjust the work intensity;
■ polarity change cable for welding in shielding gases or with FLUX cored wire;
■ for semi-automatic welding: 2T/4T modes;
■ arc dynamics adjustment for MIG mode;
■ maximum wire spool size - 5 kg/200 m;
| Barcode: | 6977125195949 |
| Dimensions LxWxH, cm: | 45 x 34 x 37.5 |
| Weight with packaging, kg: | 10.4 |
Description:
Note! The device is supplied without a plug. In case of operation at maximum currents, the device must be equipped with a 32A 230V single-phase power plug (not included).
Equipment:
+ Semi-automatic welding
+ MIG welding torch - 3 meters
+ Grounding terminal - 1.6 meters
+ Electrode holder MMA - 1.8 meters
+ Contact tip 0.8 mm. - 1 piece
+ Contact tip 1.0 mm. - 1 piece
+ Operation manual
