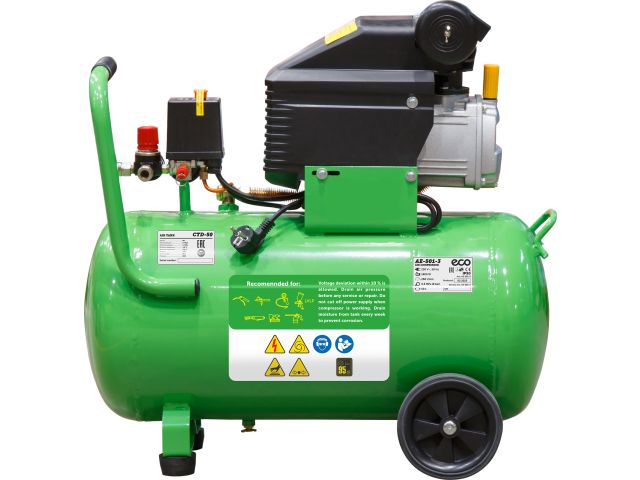

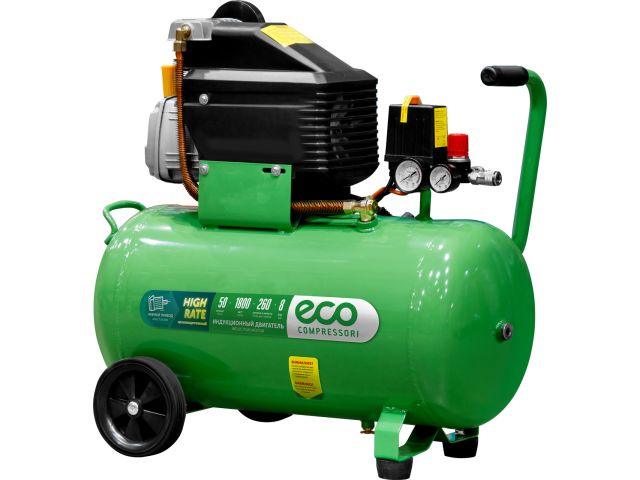

Air compressor ECO AE-501-3 coaxial (oil-lubricated, 230 V~, 50 Hz, 1ph, 1.8 kW, 8 bar, 260 l/min, 50 l, coaxial (direct driven))
Vendor code:
AE-501-3
Prices
Recommended retail price USD excluding VAT
133,66
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Type
- piston
- Lubrication type
- oil-lubricated
- Electrical parameters
- 230 V~, 50 Hz, 1ph
- Power consumption
- 1.8 kW
- Performance
- 260 l/min
- Receiver
- 50 l
- Drive
- coaxial (direct driven)
- Oil volume
- 0.3 l
Advantages:
■ Increased engine dimensions (compared to model 501-4)
■ Air tube with heat sink

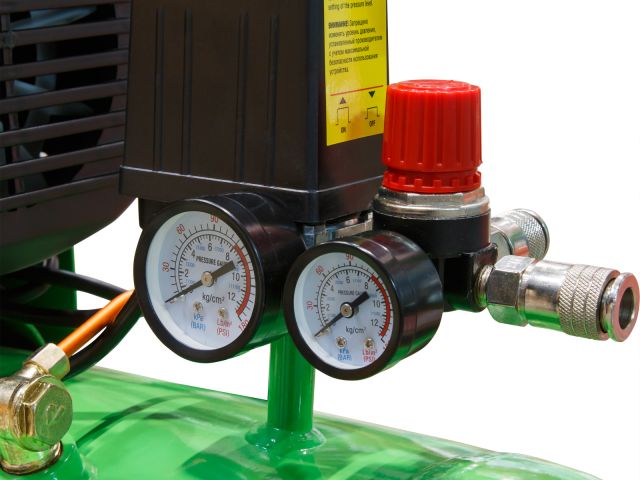

■ Pressure regulator 2 quick releases
■ Air filter with foam filter element
■ Pressure gauges with metal housing
■ Wheels with rubber linings
| Barcode: | 6923112894234 |
| Dimensions LxWxH, cm: | 69.5 x 33 x 67 |
| Weight with packaging, kg: | 31 |
Description:
Note! The oil level should be just above the edge of the oil level sight glass' red dot. The compressor is supplied with compressor oil of the required volume for starting the compressor. The oil can be filled into the crankcase of the compressor head of the compressor, or poured into a separate sealed container for transportation purposes to prevent leakage from crankcase depending on the conditions of transportation of the product. Note! There may be oil residues in the crankcase. This is due to the fact that 100% of devices are run in production after assembly to test for functionality.
Equipment:
+ Compressor
+ Air filter
+ Transport wheel (2 pcs)
+ Support leg (2 pcs)
+ Fastener kit
Compatible products:
SGK- 5 Air tool set ECO 5-in-1
Advantages:
■ Increased engine dimensions (compared to model 501-4)
■ Air tube with heat sink
■ Pressure regulator 2 quick releases
■ Air filter with foam filter element
■ Pressure gauges with metal housing
■ Wheels with rubber linings
| Barcode: | 6923112894234 |
| Dimensions LxWxH, cm: | 69.5 x 33 x 67 |
| Weight with packaging, kg: | 31 |
Description:
Note! The oil level should be just above the edge of the oil level sight glass' red dot. The compressor is supplied with compressor oil of the required volume for starting the compressor. The oil can be filled into the crankcase of the compressor head of the compressor, or poured into a separate sealed container for transportation purposes to prevent leakage from crankcase depending on the conditions of transportation of the product. Note! There may be oil residues in the crankcase. This is due to the fact that 100% of devices are run in production after assembly to test for functionality.
Equipment:
+ Compressor
+ Air filter
+ Transport wheel (2 pcs)
+ Support leg (2 pcs)
+ Fastener kit
