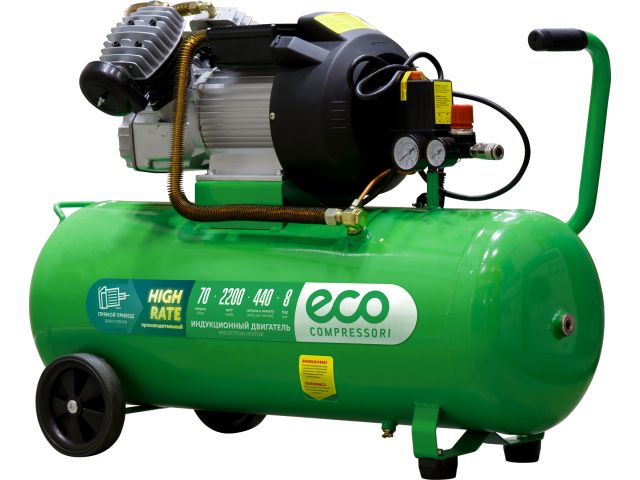

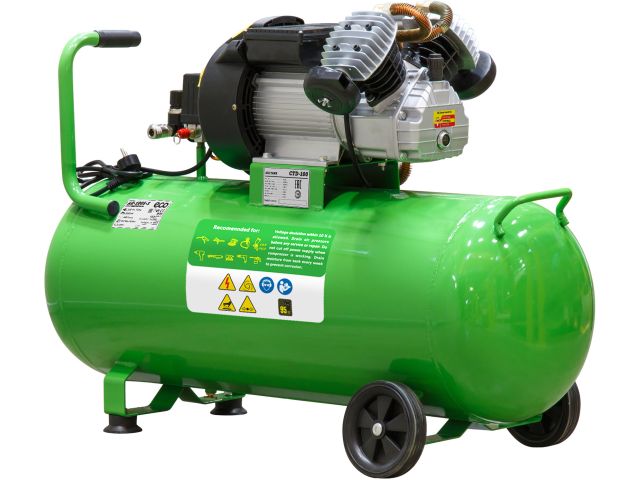

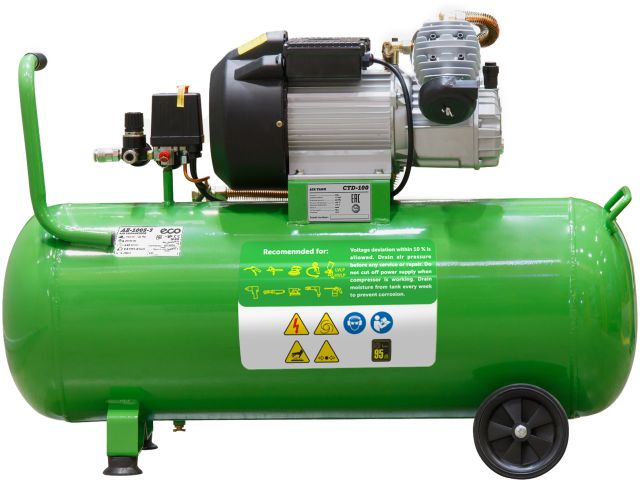

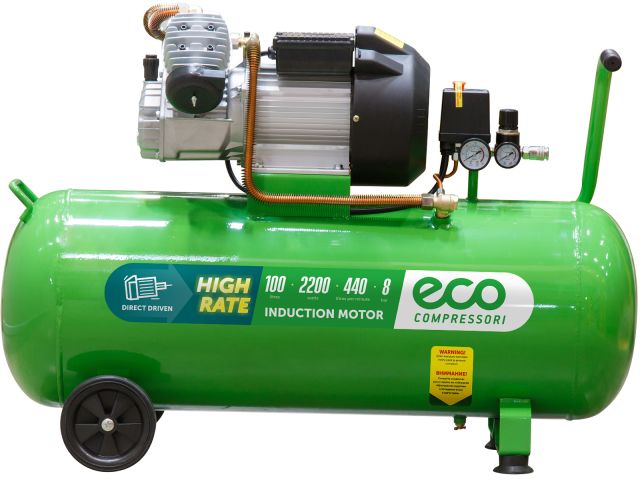

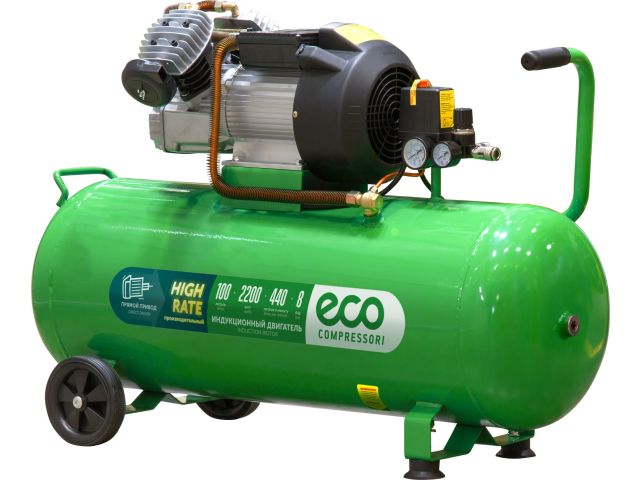

Air compressor ECO AE-1005-3 coaxial (oil-lubricated, 230 V~, 50 Hz, 1ph, 2.2 kW, 8 bar, 440 l/min, 100 l, coaxial (direct driven))
Vendor code:
AE-1005-3
| Barcode: | 8212107216242 |
| Dimensions LxWxH, cm: | 105 x 37 x 76 |
| Weight with packaging, kg: | 56.85 |
Prices
Recommended retail price USD excluding VAT
269,84
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Type
- piston
- Lubrication type
- oil-lubricated
- Electrical parameters
- 230 V~, 50 Hz, 1ph
- Power consumption
- 2.2 kW
- Performance
- 440 l/min
- Receiver
- 100 l
- Drive
- coaxial (direct driven)
- Oil volume
- 0.4 l
Advantages:
■ The simple and reliable design of the compressor allows it to be widely used for domestic purposes
■ Enlarged oil sump for better lubrication and heat removal from the piston group
■ Large capacitor for low voltage operation
■ Motor thermal protection
■ Brass check valve

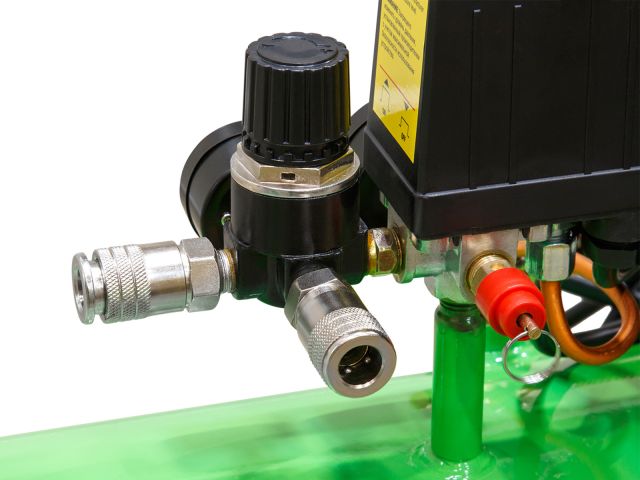

■ Adjustment of outlet pressure

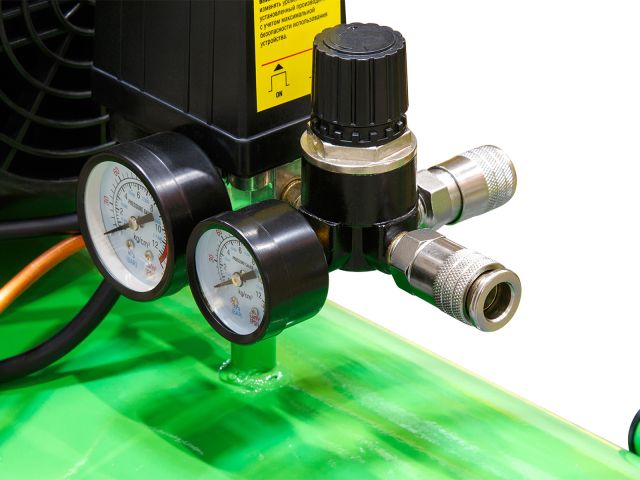

■ Two pressure gauges
■ Two quick releases with brass valve
| Barcode: | 8212107216242 |
| Dimensions LxWxH, cm: | 105 x 37 x 76 |
| Weight with packaging, kg: | 56.85 |
Description:
Note! There may be oil residues in the crankcase. This is due to the fact that 100% of devices are run in production after assembly to test for functionality. Direct drive piston oil compressor. The compressor is supplied with compressor oil of the required volume for starting the compressor. The oil can be filled into the crankcase of the compressor head of the compressor, or poured into a separate sealed container for transportation purposes to prevent leakage from crankcase depending on the conditions of transportation of the product.
Equipment:
+ Compressor
+ Air filter (2 pcs)
+ Transport wheel (2 pcs)
+ Support leg (2 pcs)
+ Fastening kit
Compatible products:
18PG Pressure gauge for ECO compressor, 1/8" thread
SGK- 5 Air tool set ECO 5-in-1
Advantages:
■ The simple and reliable design of the compressor allows it to be widely used for domestic purposes
■ Enlarged oil sump for better lubrication and heat removal from the piston group
■ Large capacitor for low voltage operation
■ Motor thermal protection
■ Brass check valve
■ Adjustment of outlet pressure
■ Two pressure gauges
■ Two quick releases with brass valve
| Barcode: | 8212107216242 |
| Dimensions LxWxH, cm: | 105 x 37 x 76 |
| Weight with packaging, kg: | 56.85 |
Description:
Note! There may be oil residues in the crankcase. This is due to the fact that 100% of devices are run in production after assembly to test for functionality. Direct drive piston oil compressor. The compressor is supplied with compressor oil of the required volume for starting the compressor. The oil can be filled into the crankcase of the compressor head of the compressor, or poured into a separate sealed container for transportation purposes to prevent leakage from crankcase depending on the conditions of transportation of the product.
Equipment:
+ Compressor
+ Air filter (2 pcs)
+ Transport wheel (2 pcs)
+ Support leg (2 pcs)
+ Fastening kit
