Deep well centrifugal pump AGELESS-2.5-1500/52-2/31-A A&P (Centrifugal multistage, 550 W, 2,4 m3/h, 84m head, 2,5" / 6,35 cm)
Vendor code:
AP01A16
| Barcode: | 3794100414153 (6376610453838) |
| Dimensions LxWxH, cm: | 10 x 10 x 160 |
| Weight with packaging, kg: | 14 |
A&P
Pumps and pumping equipment
Prices
Recommended retail price USD excluding VAT
135,05
$
Remainings
In stock Ningbo
pcs.

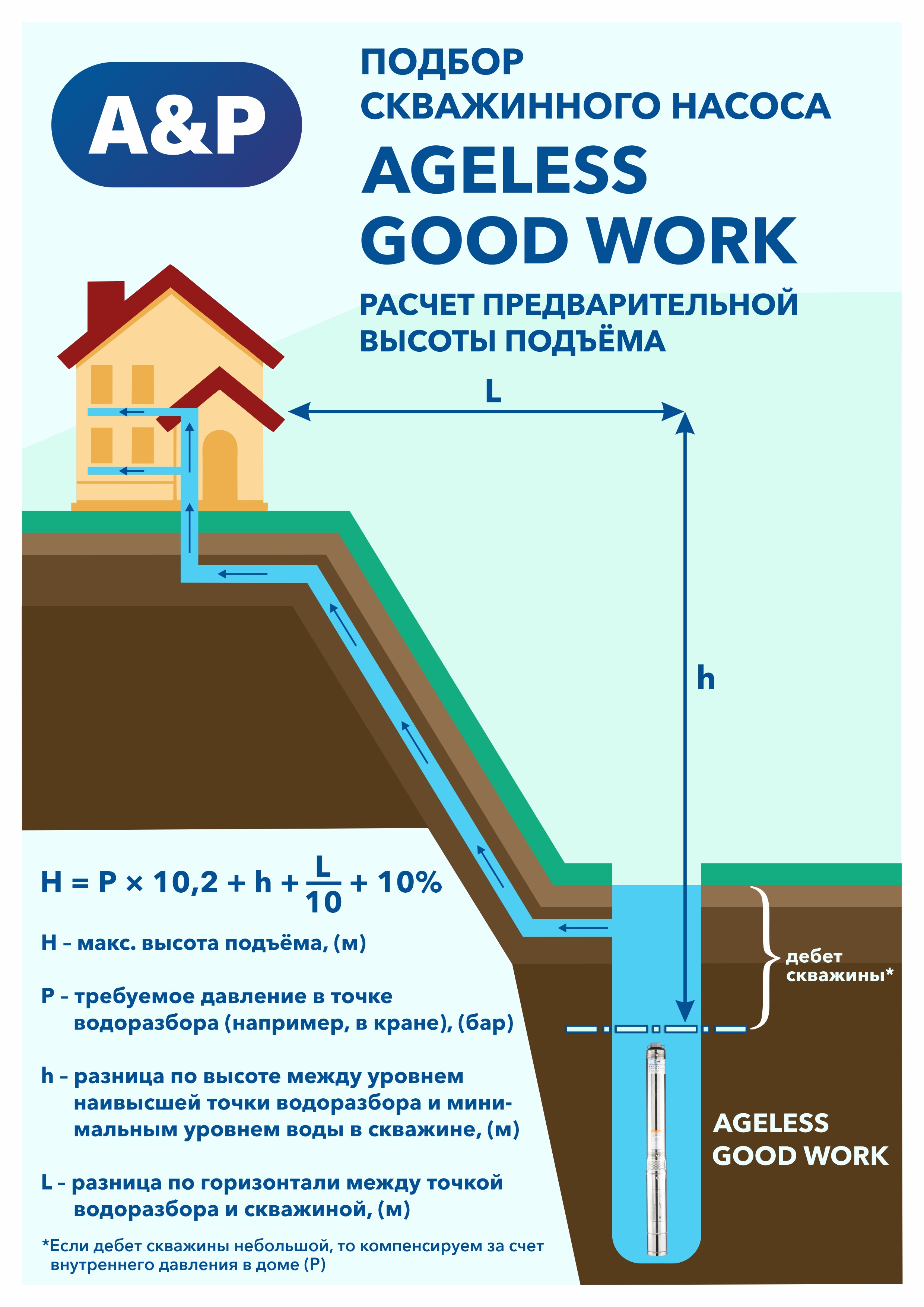

Click to calculate the appropriate borehole pump for your needs
Characteristics:
- Specifications
- Pump type
- centrifugal, multistage;D
- Motor power
- 550 W
- Capacitor capacity
- 20 uF
- Electrical network parameters
- 220 V, 50 Hz
- Maximum head
- 84 m
- Maximum immersion depth
- 75 m
- Maximum flow
- 2,4 m3/h
| Barcode: | 3794100414153 (6376610453838) |
| Dimensions LxWxH, cm: | 10 x 10 x 160 |
| Weight with packaging, kg: | 14 |
A&P
Pumps and pumping equipment
Description:
Decoding the pump model using the example of: AGELESS-3-210023-28 - First comes the series: AGELESS - a series of pumps with a 2m cable requiring extension (no plug) GOOD WORK - a series of pumps with a long plug cable - Then the pump diameter: 2.5 - 2.5 inch diameter In new batches, there is a blue cover at the bottom of the pump to protect the pump motor during transportation. It can be removed together with the bolt before installation. You can leave it. It does not affect operation. 3 - diameter of 3 inches - The following is the capacity: 210023, which means that the pump pumps 2.1 m3 per hour at a pressure of 23 m - Then comes the designation of the maximum capacity: 2 - up to 3 m3 per hour. 3 - up to 4 m3 per hour - The number of impellers is indicated by the last digit: - Indication of the presence of the starting box: A (the letter A is) - there is no starting box (which means that the capacitor inside the pump housing is a three-core cable) (there is no letter A) - there is a starting box (which means that the capacitor inside the box is a four-core cable)
Equipment:
+ 2 meter 0.5 mm2 cable, (3 cores)
+ - Cable extension kit
Compatible products:
| Barcode: | 3794100414153 (6376610453838) |
| Dimensions LxWxH, cm: | 10 x 10 x 160 |
| Weight with packaging, kg: | 14 |
A&P
Pumps and pumping equipment
Description:
Decoding the pump model using the example of: AGELESS-3-210023-28 - First comes the series: AGELESS - a series of pumps with a 2m cable requiring extension (no plug) GOOD WORK - a series of pumps with a long plug cable - Then the pump diameter: 2.5 - 2.5 inch diameter In new batches, there is a blue cover at the bottom of the pump to protect the pump motor during transportation. It can be removed together with the bolt before installation. You can leave it. It does not affect operation. 3 - diameter of 3 inches - The following is the capacity: 210023, which means that the pump pumps 2.1 m3 per hour at a pressure of 23 m - Then comes the designation of the maximum capacity: 2 - up to 3 m3 per hour. 3 - up to 4 m3 per hour - The number of impellers is indicated by the last digit: - Indication of the presence of the starting box: A (the letter A is) - there is no starting box (which means that the capacitor inside the pump housing is a three-core cable) (there is no letter A) - there is a starting box (which means that the capacitor inside the box is a four-core cable)
Equipment:
+ 2 meter 0.5 mm2 cable, (3 cores)
+ - Cable extension kit
