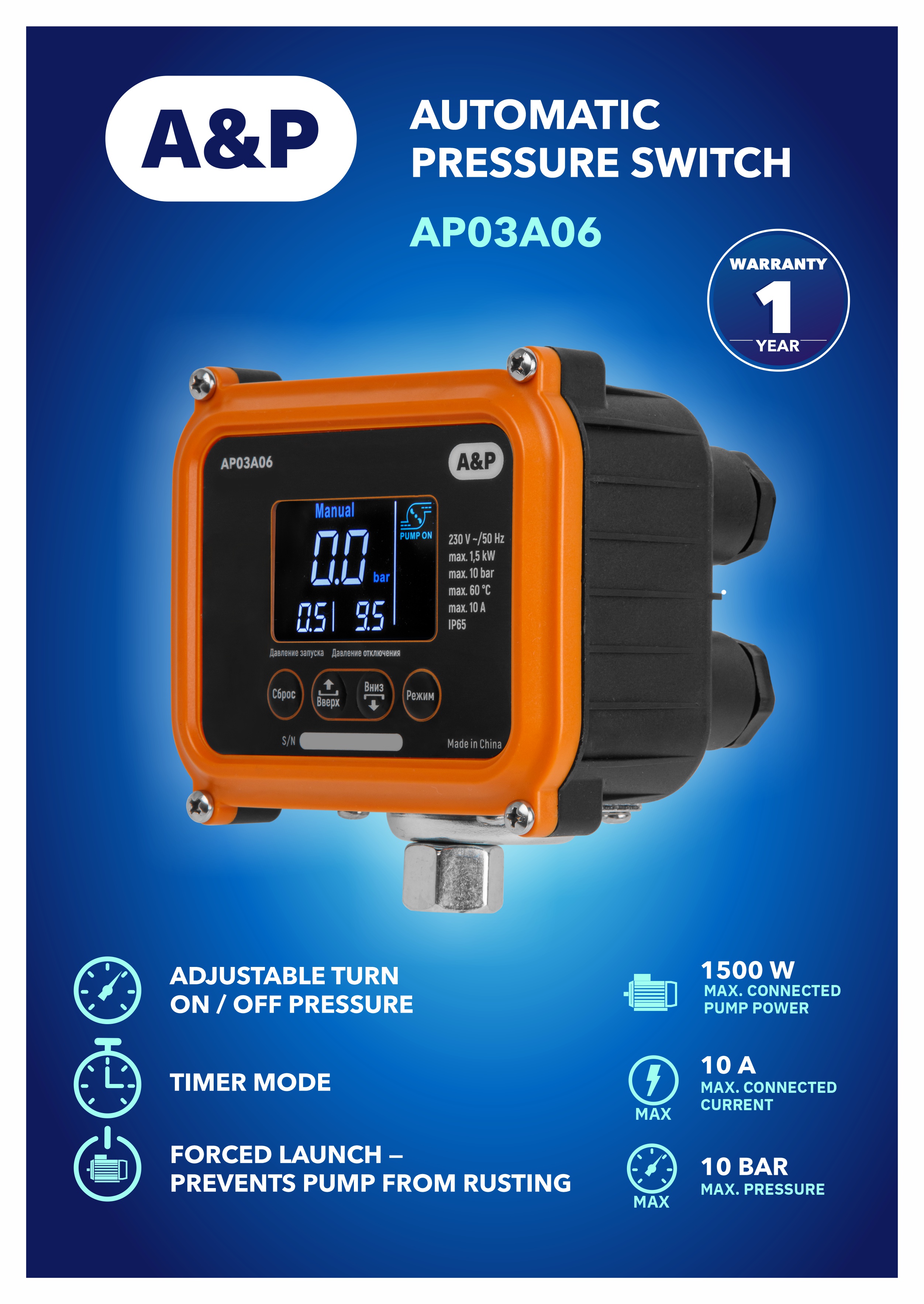

Automatic pressure switch for pump 1/4" f. A&P
Vendor code:
AP03A06
| Barcode: | 6976215888990 |
| Dimensions LxWxH, cm: | 11.2 x 12.2 x 15.6 |
| Weight with packaging, kg: | 0.838 |
A&P
Pumps and pumping equipment
Prices
Recommended retail price USD excluding VAT
29,60
$
Remainings
In stock Ningbo
pcs.
Click to find the appropriate calculator for your needs
Characteristics:
- Voltage
- 230 V
- AC frequency
- 50 Hz
- Maximum switching power
- 1500W
- Maximum switching current
- 10 A
- Maximum operating pressure
- 10 Bar
- Minimum operating temperature
- + 1 °C
- Maximum operating temperature
- +60 °C
- Operating pressure range
- 0,59 + 5.0 Bar
| Barcode: | 6976215888990 |
| Dimensions LxWxH, cm: | 11.2 x 12.2 x 15.6 |
| Weight with packaging, kg: | 0.838 |
A&P
Pumps and pumping equipment
Description:
The pressure switch consists of a housing, inside which there is a normally closed contact group controlled by a diaphragm connected to the pressure line. The relay switches the pump on when the system pressure falls below a set value and switches the pump off when the system pressure reaches the set switch-off value.
Equipment:
+ Pressure switch, 1 pc;
+ 1 m cable with plug, 1 pc;
+ 0,5 m cable with socket, 1 pc;
+ Passport, 1 pc;
| Barcode: | 6976215888990 |
| Dimensions LxWxH, cm: | 11.2 x 12.2 x 15.6 |
| Weight with packaging, kg: | 0.838 |
A&P
Pumps and pumping equipment
Description:
The pressure switch consists of a housing, inside which there is a normally closed contact group controlled by a diaphragm connected to the pressure line. The relay switches the pump on when the system pressure falls below a set value and switches the pump off when the system pressure reaches the set switch-off value.
Equipment:
+ Pressure switch, 1 pc;
+ 1 m cable with plug, 1 pc;
+ 0,5 m cable with socket, 1 pc;
+ Passport, 1 pc;
