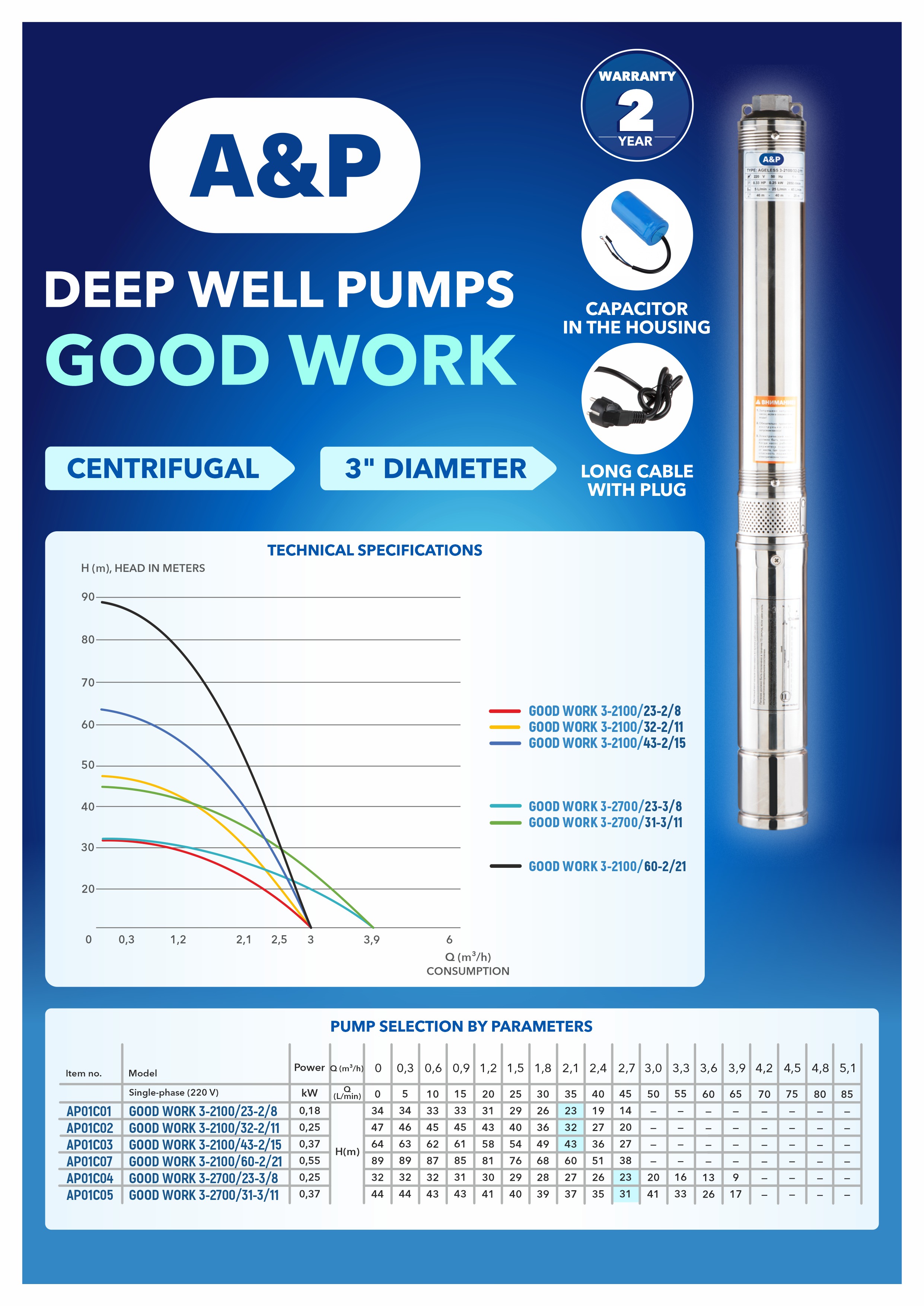

Deep well centrifugal pump GOOD WORK 3-2100/43-2/15, A&P (Centrifugal multistage, 370 W, 2.7 m3/h, 64m head, 3" / 7.62 cm)
Vendor code:
AP01C03
| Barcode: | 3794100414085 (6376610453807) |
| Dimensions LxWxH, cm: | 95 x 9 x 17 |
| Weight with packaging, kg: | 12.8 |
A&P
Pumps and pumping equipment
Prices
Recommended retail price USD excluding VAT
157,25
$
Remainings
In stock Ningbo
pcs.
Click to calculate the appropriate borehole pump for your needs
Characteristics:
- Pump type
- centrifugal, multistage
- Motor power
- 370 W
- Capacitor capacity
- 20 uF
- Electrical network parameters
- 220 V, 50 Hz
- Maximum head
- 64 m
- Maximum immersion depth
- 45 m
- Maximum flow
- 2,7 m3/h
- Impellers number
- 15
| Barcode: | 3794100414085 (6376610453807) |
| Dimensions LxWxH, cm: | 95 x 9 x 17 |
| Weight with packaging, kg: | 12.8 |
A&P
Pumps and pumping equipment
Description:
Decoding the pump model using the example of: AGELESS-3-210023-28 - First comes the series: AGELESS - a series of pumps with a 2m cable requiring extension (no plug) GOOD WORK - a series of pumps with a long plug cable - Then the pump diameter: 2.5 - 2.5 inch diameter 3 - diameter of 3 inches - The following is the capacity: 210023, which means that the pump pumps 2.1 m3 per hour at a pressure of 23 m - Then comes the designation of the maximum capacity: 2 - up to 3 m3 per hour. 3 - up to 4 m3 per hour - The number of impellers is indicated by the last digit: - Indication of the presence of the starting box: A (letter A is present) - there is no starting box (which means there is a capacitor inside the pump housing with a three-core cable) (letter A is not present) - there is a starting box (which means there is a capacitor inside the box with a four-core cable) In new batches, there is a blue cover at the bottom of the pump to protect the pump motor during transportation. It can be removed together with the bolt before installation. You can leave it. It does not affect operation.
Equipment:
+ 48 meter cable with plug;
+ - The pump;
+ - Instructions;
Compatible products:
| Barcode: | 3794100414085 (6376610453807) |
| Dimensions LxWxH, cm: | 95 x 9 x 17 |
| Weight with packaging, kg: | 12.8 |
A&P
Pumps and pumping equipment
Description:
Decoding the pump model using the example of: AGELESS-3-210023-28 - First comes the series: AGELESS - a series of pumps with a 2m cable requiring extension (no plug) GOOD WORK - a series of pumps with a long plug cable - Then the pump diameter: 2.5 - 2.5 inch diameter 3 - diameter of 3 inches - The following is the capacity: 210023, which means that the pump pumps 2.1 m3 per hour at a pressure of 23 m - Then comes the designation of the maximum capacity: 2 - up to 3 m3 per hour. 3 - up to 4 m3 per hour - The number of impellers is indicated by the last digit: - Indication of the presence of the starting box: A (letter A is present) - there is no starting box (which means there is a capacitor inside the pump housing with a three-core cable) (letter A is not present) - there is a starting box (which means there is a capacitor inside the box with a four-core cable) In new batches, there is a blue cover at the bottom of the pump to protect the pump motor during transportation. It can be removed together with the bolt before installation. You can leave it. It does not affect operation.
Equipment:
+ 48 meter cable with plug;
+ - The pump;
+ - Instructions;
