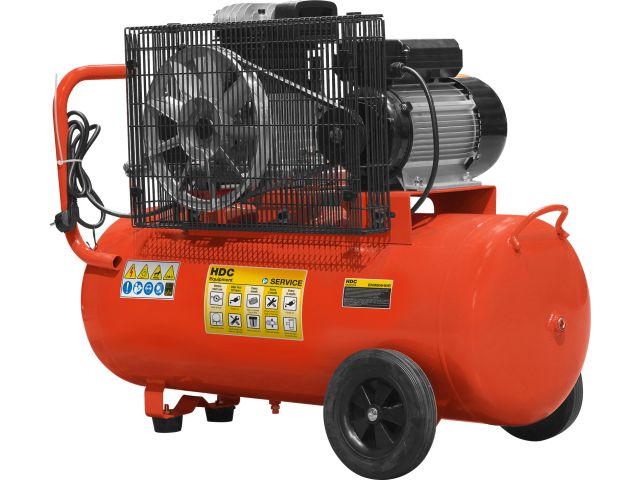

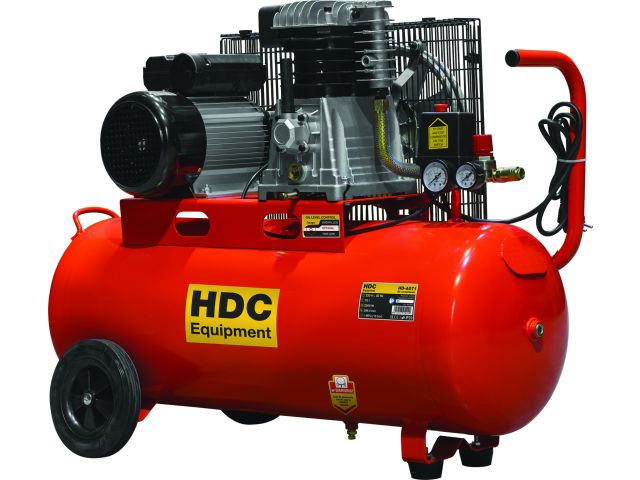

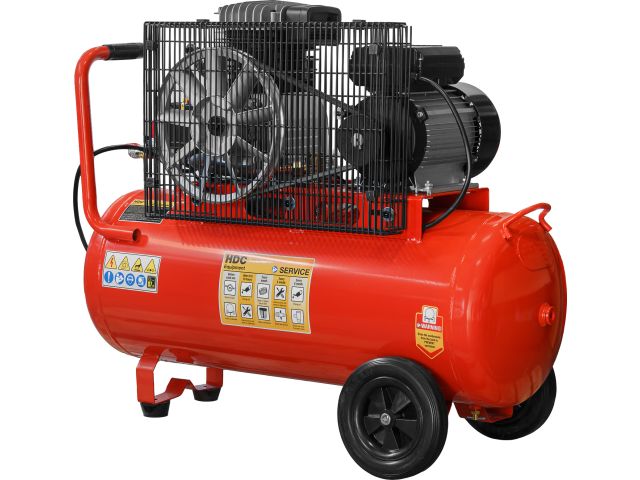

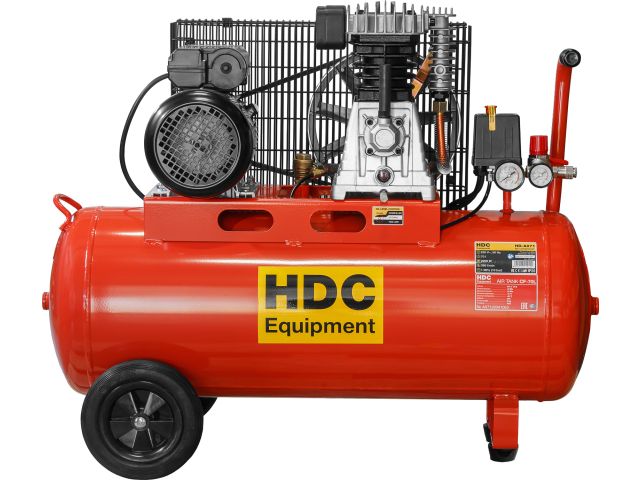

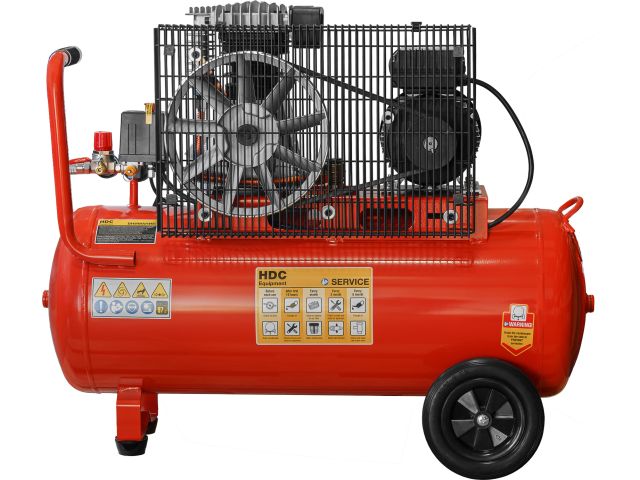

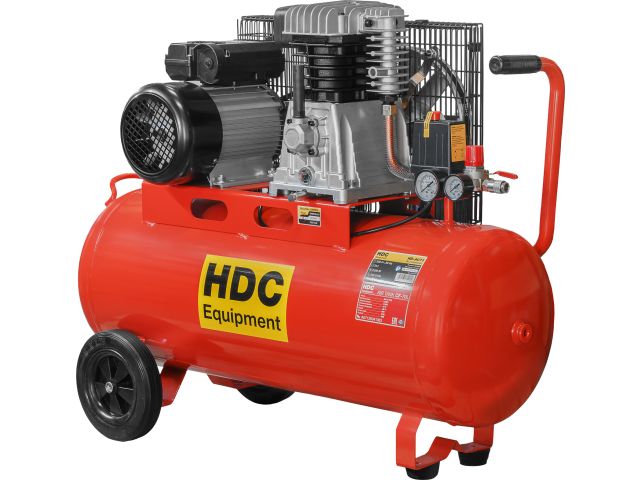

Air compressor HDC HD-A071
Barcode: | 8212107214224 ( ) |
Dimensions LxWxH, cm: | 97 x 38 x 73 |
Weight with packaging, kg: | 62.245 |
Prices
Remainings
Advantages:
396 l/min; 10 atm; belt-driven; oil; tank 70 l; 230 V; 2.20 kW
Barcode: | 8212107214224 ( ) |
Dimensions LxWxH, cm: | 97 x 38 x 73 |
Weight with packaging, kg: | 62.245 |
Equipment:

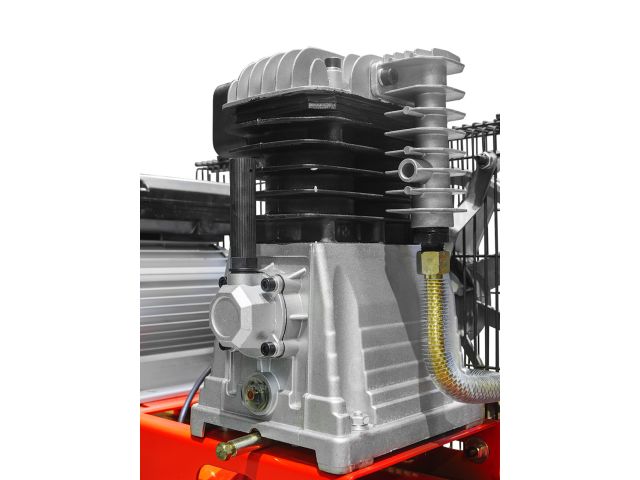

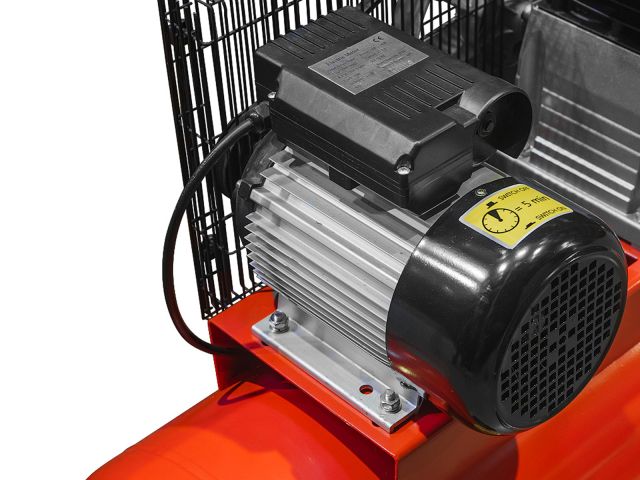

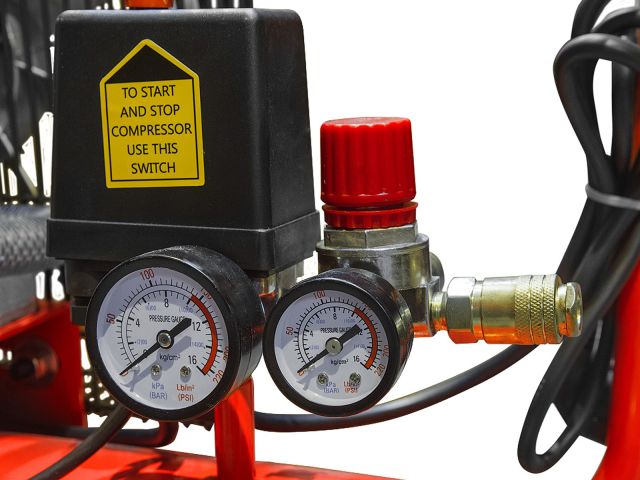

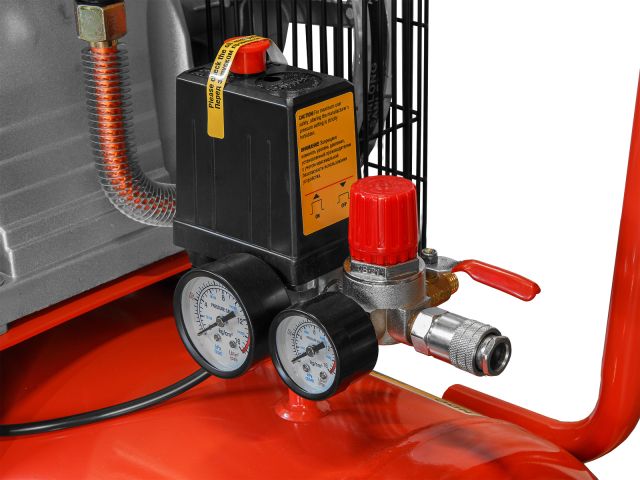

Advantages: Air two-cylinder in-line oil compressor; The vertical arrangement of the cylinders significantly reduces the wear of the piston seals and cylinder liner and contributes to more uniform lubrication of the cylinders. - cylinder liners and piston rings - alloy cast iron; - valve plates - stainless spring steel; - cylinder heads - heat-treated aluminum alloy; on the cylinder head and liner are enlarged for more efficient heat dissipation from the piston group. The electric motor is protected from thermal overloads and equipped with an automatic restart system. The compressor is supplied filled with oil. The standard resource of the piston group is not less than 3000 hours. --- Specifications: Network parameters: 220 V / 50 Hz / 1f; Power consumption: 2.2 kW; Working pressure: 0 - 10 atm; ; Receiver: 70 ; Type: piston ; Type of lubrication: oil ; Drive: belt ; Number of cylinders: 2 (in-line) ; Oil volume: 0.85 l ; Oil level control: oil eye ; Number of outlets: 2 quick releases ; Number of capacitors: ; Mobile: Yes ; Net weight: 58.3 kg ; Gross weight: 65.9 kg ; Carton dimensions: 98x40x79 cm ; 2 months ; --- Compatible products: AES-18PG Pressure gauge for ECO compressor, 1/8" thread; AES-14PG Pressure gauge for ECO compressor, thread 1/4"; AES-414P Four-way pressure switch; AES- 4R Four-way pressure regulator; AB-F/MT14 detachable (brass); AS-F/MT14 Quick coupling (steel); --- Attention! Mode of operation - repeated-short-term. The duration of one cycle is from 6 to 10 minutes, followed by a break of up to 10 minutes. Continuous operation of the compressor electric motor is allowed for no more than 15 minutes, but not more than once in two hours.
