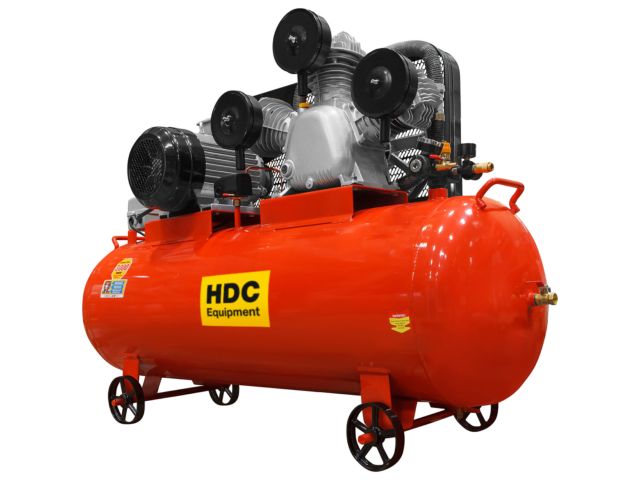

Air compressor HDC HD-A303 belt drive (oil-lubricated, 380 V~, 3ph, 6.5 kW, 900 l/min, 10 bar, 300 l, belt-driven)
Vendor code:
HD2530-2
Prices
Recommended retail price USD excluding VAT
1 013,54
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Type
- piston
- Performance
- 900 l/min
- Maximum permissible operating pressure
- 10 bar
- Lubrication type
- oil
- Receiver volume
- 300 l
- Electrical parameters
- 380 V~, 50 Hz, 3ph
- Power consumption
- 6.5 kW
- Drive
- belt-driven
Advantages:
■ W-shaped massive pump with large cooling fins
■ Powerful three-phase motor with copper winding
■ Low pump rotation speed ensures long service life and low vibration
■ Magnetic starter for three-phase motor protection
■ Dual belt transmission reduces drive load and increases service life
■ Large pressure gauge for monitoring receiver pressure
■ 3 pneumatic outlets: quick-release with pressure regulator and pressure gauge, ball valve 1/4" with hose barb, ball valve on receiver 1/2" (female) for direct air outlet or connecting an additional receiver
■ Metal-housing air filters with paper filter elements
■ Heavy-duty steel wheels for easy transportation
■ Supplied filled with compressor oil
| Barcode: | |
| Dimensions LxWxH, cm: | 1 x 1 x 1 |
| Weight with packaging, kg: | 1 |
Description:
The kit does not include a power cord and plug; the equipment must be equipped with the power cord and plug required by the user. It must be connected to the electrical network through a machine.
Equipment:
+ Compressor
+ Air filters
+ Transport wheels
+ Fastening kit
