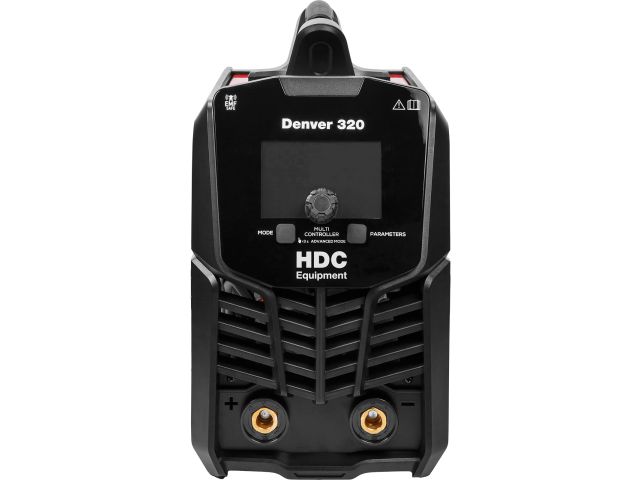

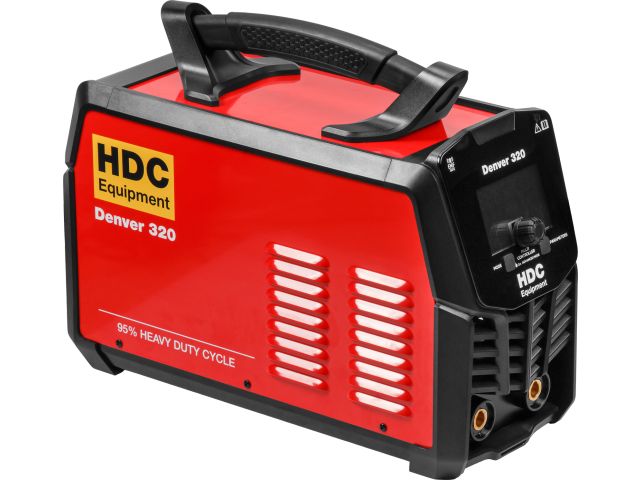

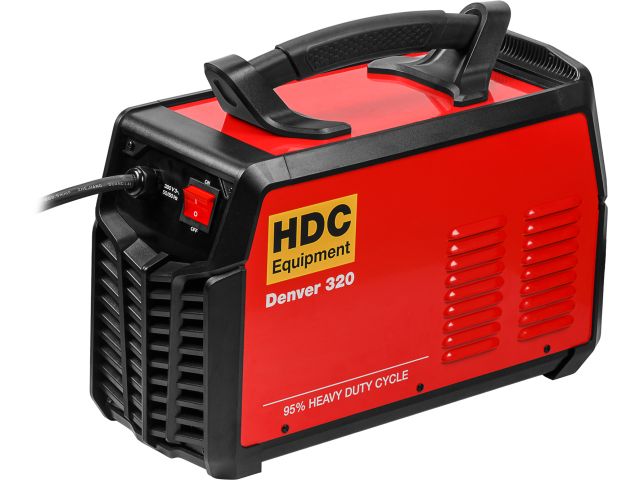

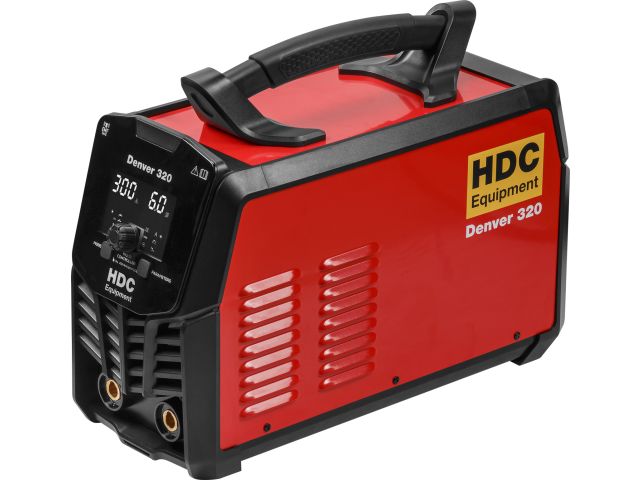

Stick welder HDC Denver 320
Vendor code:
HD5610-2
| Barcode: | 6979163402911 |
| Dimensions LxWxH, cm: | 58 x 33 x 43 |
| Weight with packaging, kg: | 18.2 |
Prices
Recommended retail price USD excluding VAT
491,82
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Power supply voltage
- ~380 V
- Power supply frequency
- 50/60 Hz
- Power supply type
- three-phase
- Open circuit voltage
- 68 V
- Output current range
- 20-300 A
- Duty cycle
- at 20 °C
- 95%
- at 40 °C (EN 60974-1)
- 60%
Advantages:
■ Manual arc welding in MMA and PULSE MMA modes;
■ Argon arc welding in LIFT TIG and PULSE LIFT TIG modes;
■ Celulosic electrode welding mode (CEL MMA);
■ High duty cycle and effective cooling for intensive work;
■ Works with electrodes up to 6 mm in diameter;

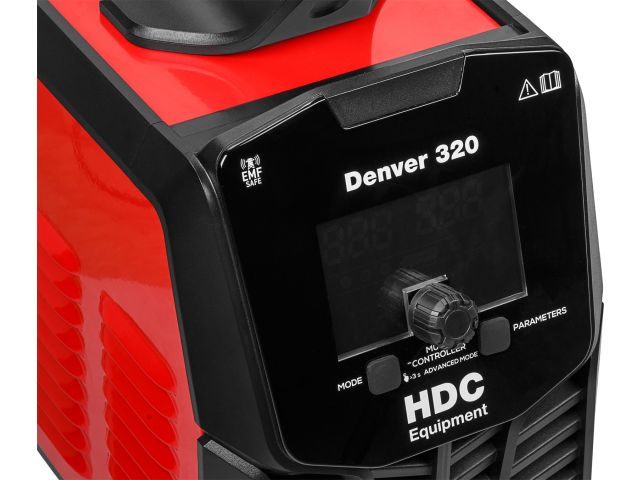

■ Large display with an intuitive interface, even for novice users;
■ Displays the optimal welding electrode diameter based on welding current (MMA);
■ Open circuit voltage (VRD) function (MMA);
■ Welding cables (3 + 3 meters);
■ Adjustable hot start (MMA);
■ Adjustable arc force (Arc Force) (MMA);
■ Adjustable frequency in pulse welding mode (PULSE MMA, PULSE LIFT TIG);
■ IP23S protection rating for the harshest conditions;
■ Input voltage indicator for drops below 270 V;
■ Displays the total operating time of the device;
■ EMC filter for network protection.
| Barcode: | 6979163402911 |
| Dimensions LxWxH, cm: | 58 x 33 x 43 |
| Weight with packaging, kg: | 18.2 |
Description:
An inverter welding machine for professional use. Suitable for manual arc welding with a coated electrode. It also features an additional gas-shielded tungsten arc welding function. ATTENTION! The machine is supplied without a plug. When operating at maximum current, the machine must be equipped with a 25A 380V three-phase power plug (not included).

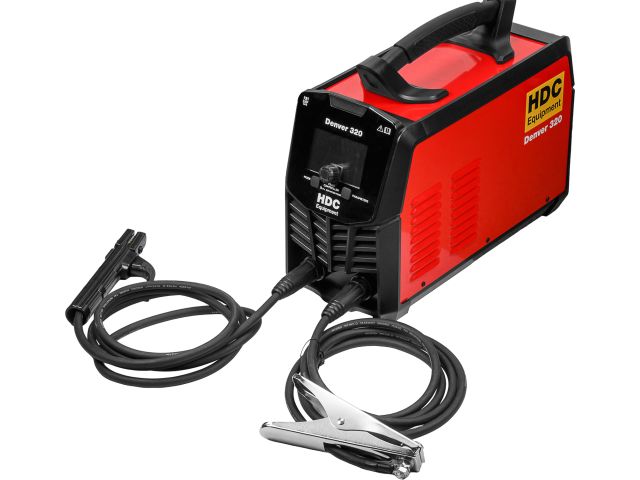

Equipment:

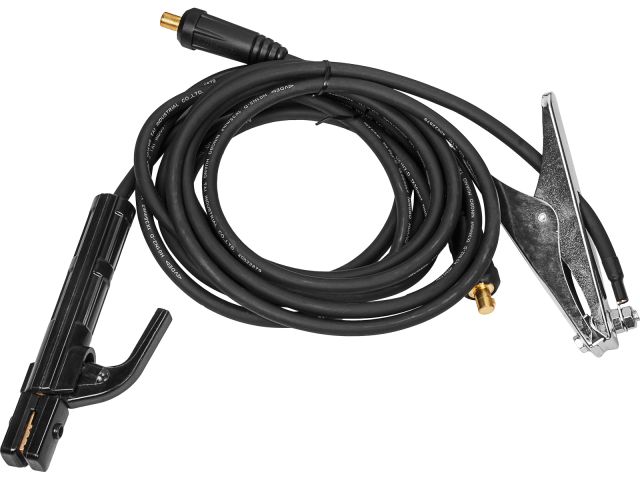

+ Welding inverter;
+ Electrode holder with 3 m cable;
+ Ground clamp with 3 m cable;
+ Operating manual;
+ Packaging.
Compatible products:
Advantages:
■ Manual arc welding in MMA and PULSE MMA modes;
■ Argon arc welding in LIFT TIG and PULSE LIFT TIG modes;
■ Celulosic electrode welding mode (CEL MMA);
■ High duty cycle and effective cooling for intensive work;
■ Works with electrodes up to 6 mm in diameter;
■ Large display with an intuitive interface, even for novice users;
■ Displays the optimal welding electrode diameter based on welding current (MMA);
■ Open circuit voltage (VRD) function (MMA);
■ Welding cables (3 + 3 meters);
■ Adjustable hot start (MMA);
■ Adjustable arc force (Arc Force) (MMA);
■ Adjustable frequency in pulse welding mode (PULSE MMA, PULSE LIFT TIG);
■ IP23S protection rating for the harshest conditions;
■ Input voltage indicator for drops below 270 V;
■ Displays the total operating time of the device;
■ EMC filter for network protection.
| Barcode: | 6979163402911 |
| Dimensions LxWxH, cm: | 58 x 33 x 43 |
| Weight with packaging, kg: | 18.2 |
Description:
An inverter welding machine for professional use. Suitable for manual arc welding with a coated electrode. It also features an additional gas-shielded tungsten arc welding function. ATTENTION! The machine is supplied without a plug. When operating at maximum current, the machine must be equipped with a 25A 380V three-phase power plug (not included).
Equipment:
+ Welding inverter;
+ Electrode holder with 3 m cable;
+ Ground clamp with 3 m cable;
+ Operating manual;
+ Packaging.
