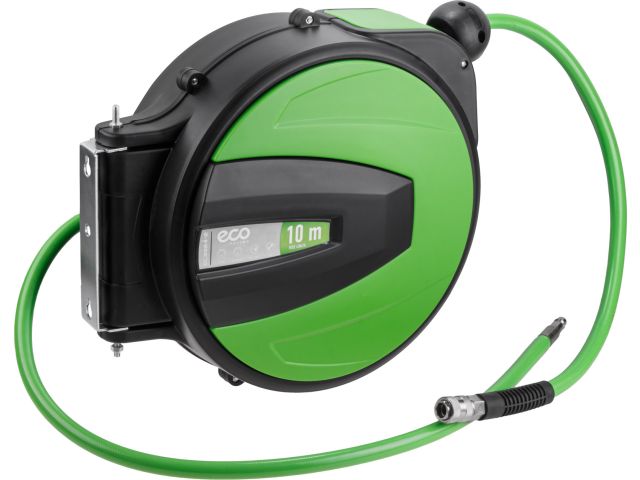

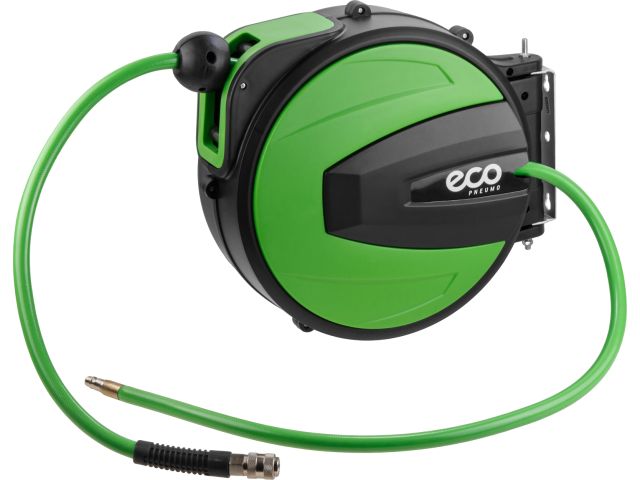

Reinforced air hose reel 10/16 mm with quick release ECO (length 10 m) (Working pressure: 22 bar, max. pressure: 65 bar, wall thickness: 3 mm)
Vendor code:
EC3924-2
Prices
Recommended retail price USD excluding VAT
56,63
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Maximum pressure
- 65 bar
- Working pressure
- 22 bars
- Compound
- 1/4"
- Hose Nominal length
- 10 m
- Operating temperature range
- -35…+75 °C
- Hose diameter (internal/external)
- 10/16 mm
- Hose material
- reinforced PVC (polyvinyl chloride)
- Quick release material
- steel
Advantages:
■ The hose is designed to connect air injection equipment with various pneumatic tools
■ Equipped with a closed type coil

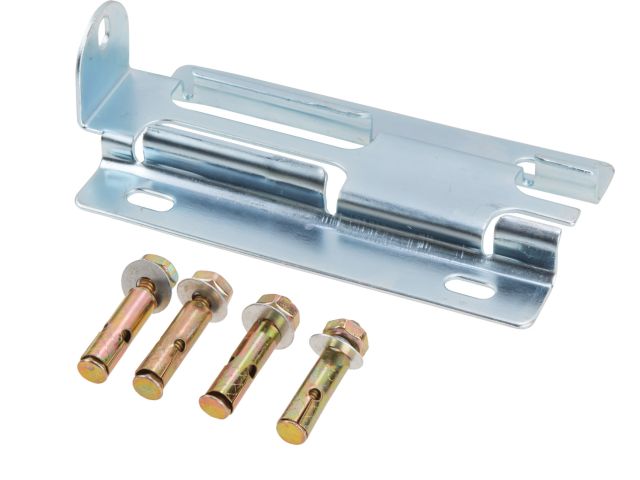

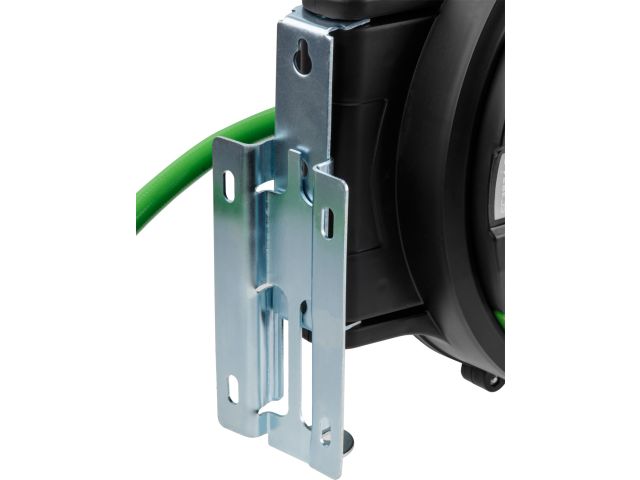

■ Has a 180° swivel bracket for wall mounting
■ The reel is equipped with an automatic winding system
■ The hose has a movable limiter

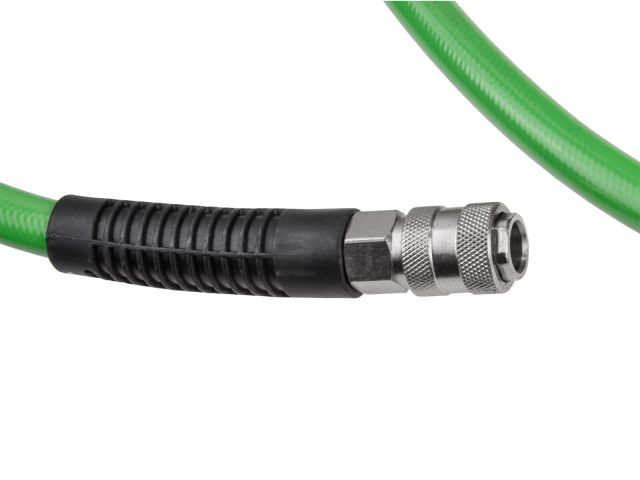

■ The hose is equipped with steel quick-release couplings male and female
■ The hose material is UV resistant
| Barcode: | 6977125195819 |
| Dimensions LxWxH, cm: | 41 x 37 x 17.5 |
| Weight with packaging, kg: | 5.4 |
Advantages:
■ The hose is designed to connect air injection equipment with various pneumatic tools
■ Equipped with a closed type coil
■ Has a 180° swivel bracket for wall mounting
■ The reel is equipped with an automatic winding system
■ The hose has a movable limiter
■ The hose is equipped with steel quick-release couplings male and female
■ The hose material is UV resistant
| Barcode: | 6977125195819 |
| Dimensions LxWxH, cm: | 41 x 37 x 17.5 |
| Weight with packaging, kg: | 5.4 |
