Installation set 3 in 1 with 311 button, AV Engineering (Chrome rectangular button)
Vendor code:
AVW31-311
| Barcode: | 6976215889560 |
| Dimensions LxWxH, cm: | 117 x 51 x 15 |
| Weight with packaging, kg: | 14.5 |
AV Engineering
Plumbing and Sanitary ware
Prices
Recommended retail price USD excluding VAT
105,45
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Tank material
- high-strength HDPE (high-pressure polyethylene)
- Tank thickness
- 100 mm
- Flush volume
- 3 / 6 liters
- Maximum flush volume
- 6.5 liters
- Maximum static load
- 200 kg
- Maximum frame load
- 400 kg
- Maximum water pressure
- 20 Bar
- Operating water pressure
- 0.1 - 16 bar.
Advantages:
■ Solid-cast tank
| Barcode: | 6976215889560 |
| Dimensions LxWxH, cm: | 117 x 51 x 15 |
| Weight with packaging, kg: | 14.5 |
AV Engineering
Plumbing and Sanitary ware
Description:

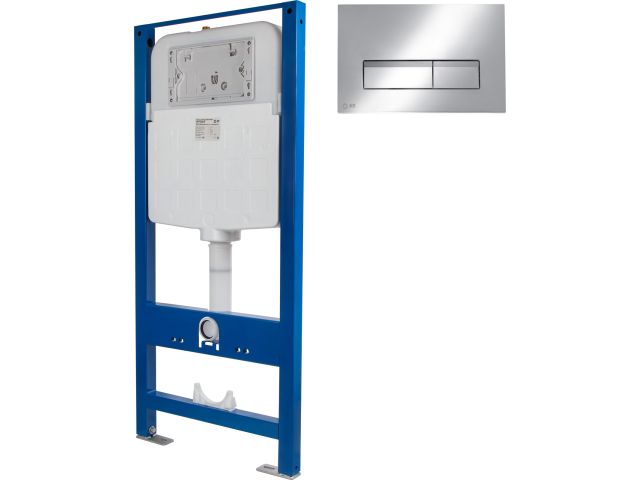

The installation set is designed for mounting a wall-hung toilet to the load-bearing wall of a building by securing the toilet bowl onto the mounting beams of the frame. The system ensures the supply of water to the toilet when the flushing mechanism is activated and the drainage of waste from the toilet into the building's internal sewage system is facilitated by a concealed cistern and fittings installed on the frame. Water is automatically supplied to the tank through the fittings.
Equipment:
+ Metal frame with plastic flush cistern assembly - 1 pc;
+ Set of installation fastening to the floor - 1 set;
+ Set of installation fastening to the wall - 1 set;
+ Set of toilet bowl attachment to the installation - 1 set;
+ Brass valve - 1 pc;
+ Flexible hose - 1 pc;
+ Clip for drain pipe - 1 pc;
+ Plastic protective box for push mechanism - 1 pc;
+ 90 mm drain elbow with adapter for 110 mm - 1 pc;
+ 90 mm drain pipe - 1 pc;
+ Soundproofing plate - 1 pc;

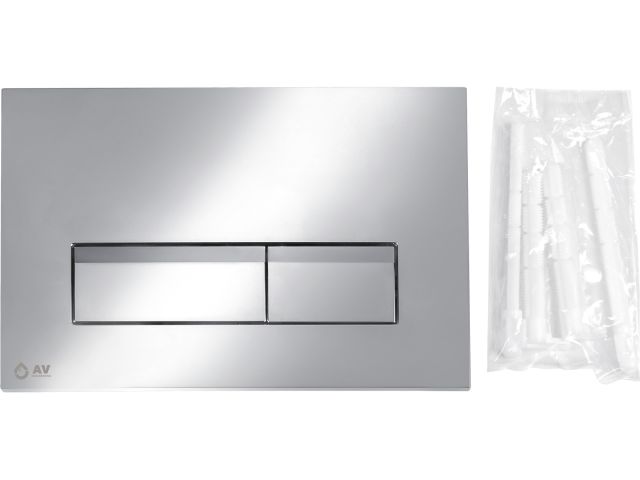

+ Control button - 1 pc;
+ Cardboard box - 1 pc;
+ Passport with installation and operation instructions - 1 pc;
Compatible products:
Advantages:
■ Solid-cast tank
| Barcode: | 6976215889560 |
| Dimensions LxWxH, cm: | 117 x 51 x 15 |
| Weight with packaging, kg: | 14.5 |
AV Engineering
Plumbing and Sanitary ware
Description:
The installation set is designed for mounting a wall-hung toilet to the load-bearing wall of a building by securing the toilet bowl onto the mounting beams of the frame. The system ensures the supply of water to the toilet when the flushing mechanism is activated and the drainage of waste from the toilet into the building's internal sewage system is facilitated by a concealed cistern and fittings installed on the frame. Water is automatically supplied to the tank through the fittings.
Equipment:
+ Metal frame with plastic flush cistern assembly - 1 pc;
+ Set of installation fastening to the floor - 1 set;
+ Set of installation fastening to the wall - 1 set;
+ Set of toilet bowl attachment to the installation - 1 set;
+ Brass valve - 1 pc;
+ Flexible hose - 1 pc;
+ Clip for drain pipe - 1 pc;
+ Plastic protective box for push mechanism - 1 pc;
+ 90 mm drain elbow with adapter for 110 mm - 1 pc;
+ 90 mm drain pipe - 1 pc;
+ Soundproofing plate - 1 pc;
+ Control button - 1 pc;
+ Cardboard box - 1 pc;
+ Passport with installation and operation instructions - 1 pc;
