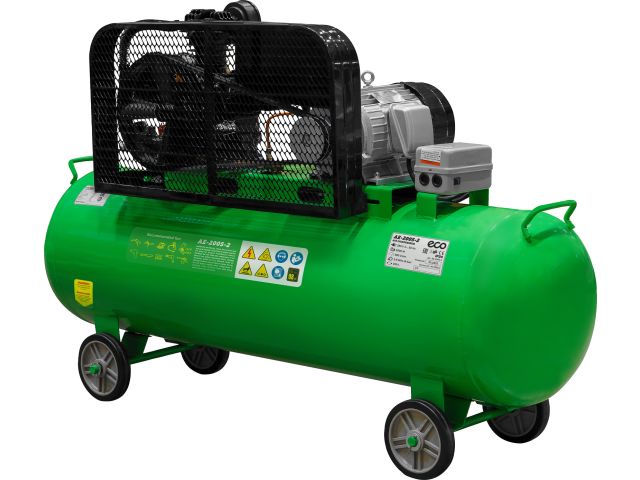

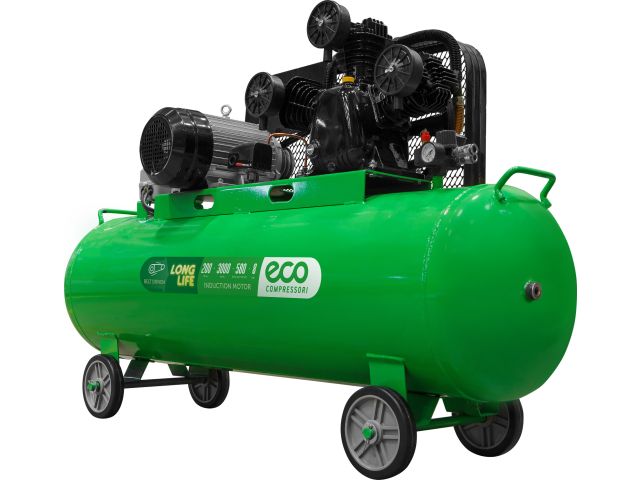

Air compressor ECO AE-2005-2
Code:
1046506
Vendor code:
AE-2005-2
| Barcode: | 8213112891424 ( ) |
| Dimensions LxWxH, cm: | 151.5 x 52.5 x 100 |
| Weight with packaging, kg: | 135 |
Prices
Last price
503,98
$
Remainings
In stock Ningbo
pcs.
Advantages:
580 l/min; 8 atm; belt-driven; oil; tank 200 l; 380 V; 3.00 kW
| Barcode: | 8213112891424 ( ) |
| Dimensions LxWxH, cm: | 151.5 x 52.5 x 100 |
| Weight with packaging, kg: | 135 |
Equipment:

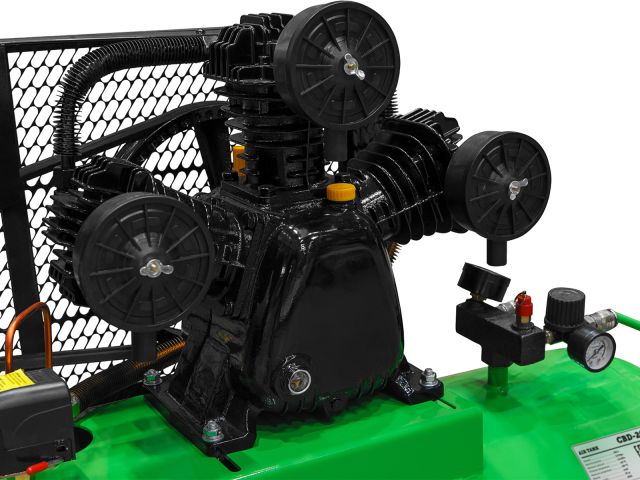

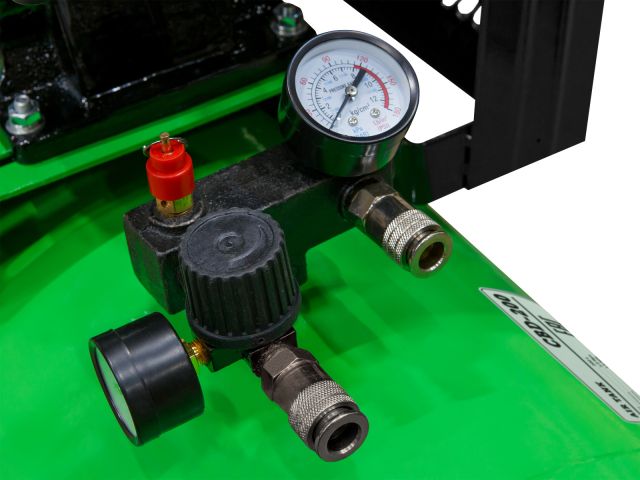

Piston V-belt compressor, oil, with 3-cylinder W-shaped pump. --- Advantages: W-shaped piston arrangement contributes to improved cooling; Vanes on the flywheel cool the cylinder liners and oil sump; Enlarged oil sump, for better lubrication and heat dissipation from the piston group; Motor thermal protection; Outlet pressure adjustment; Two pressure gauges; Brass check valve. Cast iron manifold. Compressor is supplied filled with oil. --- mains: 380 V / 50 Hz / 3ph ; Power consumption: 3.0 kW ; Working pressure: 0 - 8 atm ; Productivity: 580 l / min ; Receiver: 200 l ; Type: piston ; Lubrication type : oil ; Drive: belt ; Number of cylinders: 3 (W-shaped) ; Oil volume: 0.75 l ; Oil level control: oil eye ; Ko number of outlets: 2 ; Mobile: Yes ; Net weight: 109 kg ; Gross weight: 135 kg ; Warranty period: 12 months ;
Advantages:
580 l/min; 8 atm; belt-driven; oil; tank 200 l; 380 V; 3.00 kW
| Barcode: | 8213112891424 ( ) |
| Dimensions LxWxH, cm: | 151.5 x 52.5 x 100 |
| Weight with packaging, kg: | 135 |
Equipment:
Piston V-belt compressor, oil, with 3-cylinder W-shaped pump. --- Advantages: W-shaped piston arrangement contributes to improved cooling; Vanes on the flywheel cool the cylinder liners and oil sump; Enlarged oil sump, for better lubrication and heat dissipation from the piston group; Motor thermal protection; Outlet pressure adjustment; Two pressure gauges; Brass check valve. Cast iron manifold. Compressor is supplied filled with oil. --- mains: 380 V / 50 Hz / 3ph ; Power consumption: 3.0 kW ; Working pressure: 0 - 8 atm ; Productivity: 580 l / min ; Receiver: 200 l ; Type: piston ; Lubrication type : oil ; Drive: belt ; Number of cylinders: 3 (W-shaped) ; Oil volume: 0.75 l ; Oil level control: oil eye ; Ko number of outlets: 2 ; Mobile: Yes ; Net weight: 109 kg ; Gross weight: 135 kg ; Warranty period: 12 months ;
