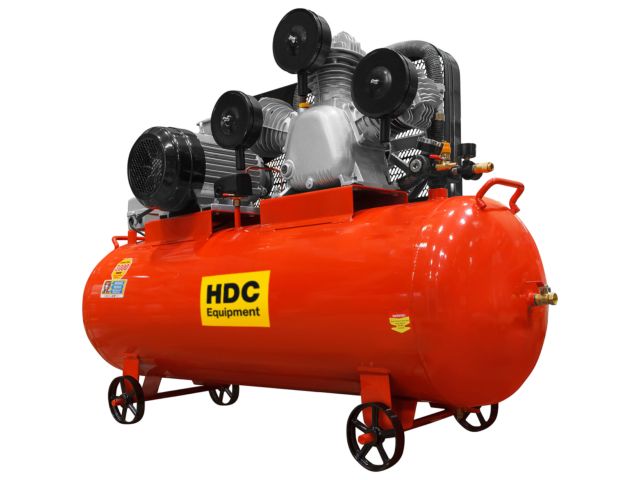

Air compressor HDC HD-A203 belt drive (oil-lubricated, 380 V~, 50 Hz, 3ph, 6.5 kW, 900 l/min, 10 bar, 200 l, belt-driven)
Vendor code:
HD-A203
| Barcode: | 1113112891165 |
| Dimensions LxWxH, cm: | 163 x 59 x 115 |
| Weight with packaging, kg: | 210.671 |
Prices
Recommended retail price USD excluding VAT
863,14
$
Remainings
In stock Ningbo
pcs.
Characteristics:
- Type
- piston
- Performance
- 900 l/min
- Lubrication type
- oil
- Receiver
- 200 l
- Electrical parameters
- 380 V~, 50 Hz, 3ph
- Power consumption
- 6.5 kW
- Drive
- belt-driven
- Oil volume
- 1.5 l
Advantages:
■ W-shaped massive pump with large fins for cooling
■ Powerful three-phase motor with copper winding
■ Low pump rotation speed guarantees long service life and minimal vibration
■ Magnetic starter for three-phase motor protection 2 transmission belts reduces the load on the drive, increases service life
■ Large pressure gauge for monitoring the pressure in the receiver
■ 3 pneumatic outlets: quick release with pressure regulator and pressure gauge ball valve 14 with herringbone connection ball valve on receiver 12 (female) for direct air outlet or to increase the capacity of the receiver
■ Air filters with metal housing and paper filter elements
■ Durable steel wheels for moving the compressor
■ The compressor is supplied filled with oil
| Barcode: | 1113112891165 |
| Dimensions LxWxH, cm: | 163 x 59 x 115 |
| Weight with packaging, kg: | 210.671 |
Description:
The kit does not include a power cord and plug; the equipment must be equipped with the power cord and plug required by the user. It must be connected to the electrical network through a machine.
Equipment:
+ Compressor
+ Air filter (3 pcs)
+ Transport wheel (4 pcs)
+ Fastening kit
Advantages:
■ W-shaped massive pump with large fins for cooling
■ Powerful three-phase motor with copper winding
■ Low pump rotation speed guarantees long service life and minimal vibration
■ Magnetic starter for three-phase motor protection 2 transmission belts reduces the load on the drive, increases service life
■ Large pressure gauge for monitoring the pressure in the receiver
■ 3 pneumatic outlets: quick release with pressure regulator and pressure gauge ball valve 14 with herringbone connection ball valve on receiver 12 (female) for direct air outlet or to increase the capacity of the receiver
■ Air filters with metal housing and paper filter elements
■ Durable steel wheels for moving the compressor
■ The compressor is supplied filled with oil
| Barcode: | 1113112891165 |
| Dimensions LxWxH, cm: | 163 x 59 x 115 |
| Weight with packaging, kg: | 210.671 |
Description:
The kit does not include a power cord and plug; the equipment must be equipped with the power cord and plug required by the user. It must be connected to the electrical network through a machine.
Equipment:
+ Compressor
+ Air filter (3 pcs)
+ Transport wheel (4 pcs)
+ Fastening kit
